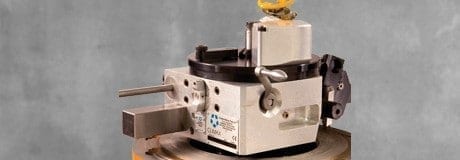

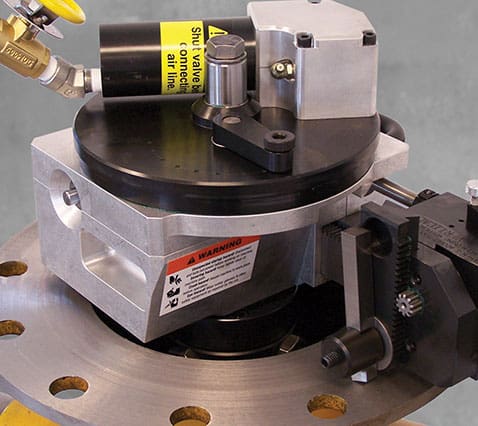

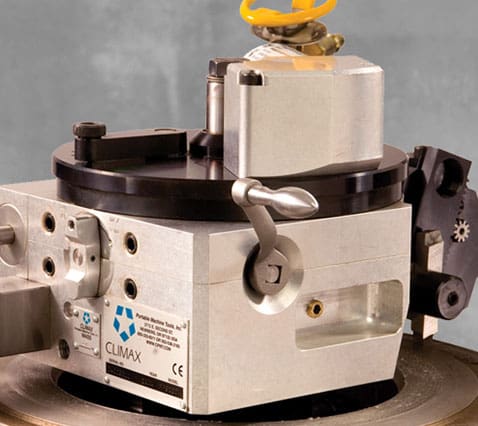

FF5000 Flange Facer

A two-piece mounting system makes this low profile unit easy to set up and align. Lightweight and simple to use whether you’re facing, beveling or turning valve, pipe or pump flanges. Facing diameters range from 5 to 24 inches (127 to 609.6 mm).

Our product line has grown to exceed over 40 on-site machine tools: line boring machines, bore welders, flange facers, portable mills, and advanced valve testing systems. Additionally, to support our global customer base we have well over 2,500 tools available in our rental fleet.

Rental Brochure

Request a quote!

Facing Diameter:
5 – 24 inches (127 – 609.6 mm)

Milling Diameter:
N/A

ID Mounting Diameter:
5 – 18 inches (88.9 – 457.2 mm)

OD Mounting Diameter:
N/A

Power Option:
Pneumatic

Quick and Easy Setup & Removal

Separate mounting chuck.

All centering and leveling is done on the chuck.

Loosen one bolt and machine can be removed from the chuck without disturbing alignment or calibration.

Lightweight

Body of machine weighs only 60 lbs (27.2 kg).

Smallest mounting chuck weighs about 5 lbs (2.2 kg).

Low Profile

Right angle motor mount.

Machine extends only 7.6 inches (193.0 mm) above flange.

Safe and Quiet Operation

Stationary feed rate selector.

Machine is controlled without touching any moving parts.

Exhaust air is routed through body of machine for increased muffling.

Simplified Operation

Single selector switch for bidirectional radial feed or vertical down-feed.

One wrench size for clamping jaws and body draw bolt.

Cuts Chamfers and Grooves

Compound tool head and down-feed for cutting angles and grooves.
