PL4000 LATHE

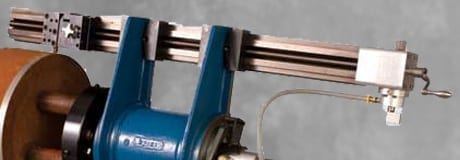

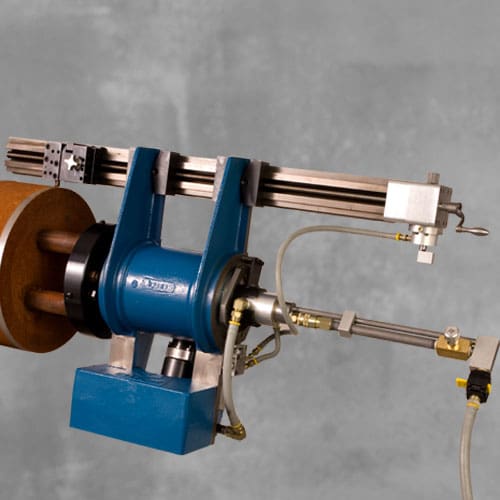

Does big jobs in tight spots. Mounts to the end of the work piece, requires minimal clearance, and re-turns both straight and tapered shafts precisely. Its turning bar is easily adjusted for reach, turning radius and obstacle clearance on projects with shaft diameters ranging from 8 to 24 inches (203.2 to 609.6 mm).

REQUEST A QUOTE AVAILABLE FOR RENT

Max. Turning Reach:
27 inches (685.8 mm)

Shaft Diameter:
8 – 24 inches (203.2 – 609.6 mm)

Power Option:
Pneumatic

Low Profile

Requires only 12.75 inches (323.8 mm) of radial turning clearance so you can work in tight spots.

Powerful and Precise

Performs all turning operations along 24.75 inches (628.7 mm) of shaft. Cuts tapers up to 2.5 inches per foot (63.5 mm per 304.8 mm) on diameter.

Turns shafts from 8.0 – 24.0 inches (203.2 – 609.6 mm). (This machine works within a 12.0 inch (304.8 mm) diameter space around the shaft, and 24.0 inches (609.6 mm) from the end of the shaft, or 27.0 inches (685.8 mm) with optional extender.)
