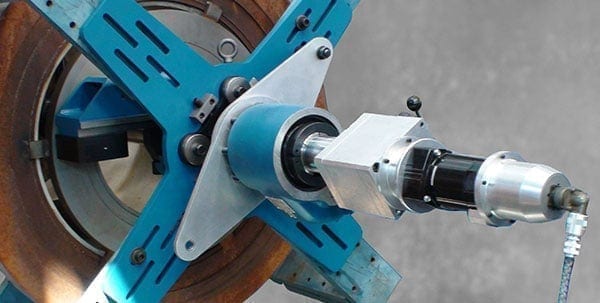

BB6100 Line Boring Machine

The CLIMAX BB6100 Line Boring Machine is the most compact model in our lineup of traveling head portable line boring machines, delivering powerful performance in a highly adaptable footprint. Engineered for precision line boring across an exceptionally wide range of applications, the BB6100 supports multiple boring diameter requirements while maintaining accuracy and rigidity in the field or shop.

Designed with a compact, modular architecture, the BB6100 delivers heavy-duty line boring capability while maximizing efficiency and minimizing downtime. Its flexible setup options allow faster alignment and reduced teardown time, making it ideal for maintenance, repair, and production work where space, speed, and versatility matter most.

Request a Quote

Available for Rent

Mobile Nav

Specifications

SPECIFICATIONS	INCH	METRIC
Bar Diameter	3.5″	88.9 mm
Boring Diameter	8.8 – 40.8″	223.5 – 1036.3 mm
Max. Stroke	length of bar	length of bar
Torque at Bar	470 – 1820 ft-lb	637.2 – 2467.6 N•m
Power Option	Hydraulic	Hydraulic

Product Advantages

Powerful Yet Compact

Take the power of a stationary machine to the job site to solve tough machining challenges in record time.

Using the 11.3 in³ (185.3 cm³) Hydraulic motor, it produces 1435 ft•lb (1945.6 N•m) of torque at the bar, at 33 rpm.

Compact, modular components allow fast, easy setup, maximizing efficiencies, and minimizing downtime.

Versatile and Flexible

Huge machining range bores from 8.8 – 40.8 inches (223.5 – 1036.3 mm) in diameter, and faces from 7.5 – 42.1 inches (190.5 – 1069.3 mm) with various facing attachments.

ID and End Mount Bearings feature spherical taper-lock roller bearings for easy setup and removal of the bar, and allow for up to 1.5 degrees of misalignment when setting up bearings.

End mount bearings can be fine adjusted by +/- 0.625 inches (15.9 mm) to center the bar.

Optional dual action boring/facing arms increase facing range, and allow for both boring and facing without switching equipment. Full-length square ways on boring/facing arms allow for quick positioning anywhere along the arm. Attaches to the net fit tool carrier by compression-clamping, to provide maximum tool stability.

Net fit tool carrier can be clamped to bar for facing operations. For boring operations, carrier can be adjusted to remove clearance between carrier and the bar. This flexibility also ensures maximum rigidity for either operation.

For even greater facing range and longer continuous stroke, the new boring/facing arms are available. Setup is quick & easy for both boring and facing operations.

Net fit tool carrier is designed with a split frame to simplify installation on the boring bar. It can be configured to use either the boring head set for boring, the mechanical facing head for facing, or the new boring/facing arm assembly for both boring and facing operations.

With leading & trailing boring head configuration, 2 boring heads can be used simultaneously.

Highly versatile tool holder block accepts industry standard tooling with a nominal ¾ inch (19.1 mm) square shank.

Tool post on the boring/facing arm can be rotated to provide maximum flexibility in machining setup (including some cantilevered configurations).

High Quality Design

Features a uniquely-designed modular tool carrier which provides a new level of strength and rigidity by channeling machining forces directly to the boring bar through strategically-located adjustable guide shoes.

Durable chromed bars, straight to within 0.001 inch per foot (0.0254 per 304.8 mm) ensure accurate machining.

Adjustable, removable half nut increases net fit tool carrier flexibility. Easy removal of tool carrier allows for machining of multiple bores.

Backlash adjustment nut allows in-the-field adjustment to eliminate backlash in the tool carrier, and extend the life of the machine.
