BG22OD BOILER GUN™ (Model OD)

BG22OD BOILER GUN™ (Model OD)

The BG22 OD Boiler Gun™ (Model OD) is a narrow-head tube machining tool for working in tight areas. The OD clamp system centers and locks the tool securely in place for excellent accuracy and safety. Mount a specialty cutting head and you can perform ID cleaning including the removal of tube rifling.

REQUEST A QUOTE AVAILABLE FOR RENT

Working Range:
0.75 in. ID – 2.25 in. OD (19.1 – 57.2 mm)

Radial Tool Clearance:
0.75 in. (19.1 mm)

Travel:
1.5 in. (38.1 mm)

Power Option:
Pneumatic (1.3 HP / 0.97 kW)

Speed:
160 RPM

Reliable Performance

The BG22OD BOILER GUN™ (Model OD) is a compact tube beveling tool that is small enough to work in a 1.5 inch (38.1 mm) wide area, yet is powerful enough to bevel tubes up to 2.25 inches (57.2 mm) OD.

Specifically designed for small diameter tube machining, the OD clamp allows for outside beveling, facing and even inside beveling for projects where the tube ID is too small for internal locking. It is also ideal for quick turnaround, single tube replacements, and window weld applications.

The OD features a narrow head, right-angle design and compact feed handle making it ideal for working in tight spaces.

Accurate, Safe and Productive

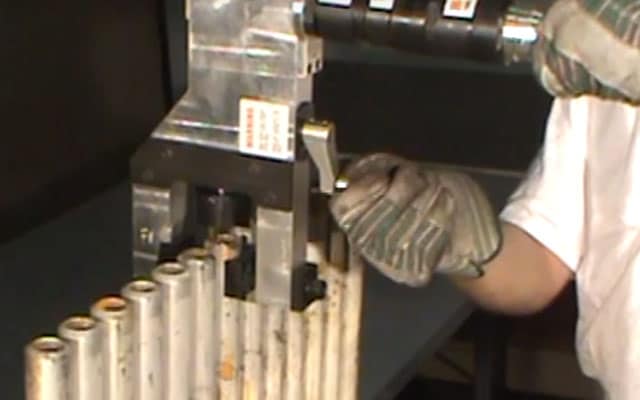

The outside wall locking system delivers torque-free operation, enhancing operator safety and productivity. A series of saddles are available to match your tube requirements. A slide adjustment is provided which compensates for out-of-round tubes to center the tool on the tube for accurate machining. This adjustment is 0.03 inch (0.76 mm) above or below the clamp saddle size.
