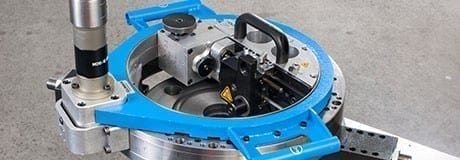

FF1200 OD Mount Flange Facer

The CLIMAX FF1200 OD Mount Flange Facer is a safe, rugged, and highly versatile solution for precision flange facing in demanding field environments. Capable of machining flanges up to 12.5 inches (317.5 mm) in diameter without attachments, the FF1200 is purpose-built for the oil, gas, and chemical industries where accuracy, reliability, and speed are critical. Its OD-mount design ensures secure setup and consistent results across a wide range of applications.

Engineered for maximum flexibility, the FF1200 performs flange facing on seven different flange types, including RTJ and compact flanges. Remote feed controls enable true hands-free machining, significantly improving operator safety while delivering up to 30% time savings compared to traditional flange facing methods. Built to withstand harsh jobsite conditions, the FF1200 sets a new benchmark for safe, efficient, and precise flange machining.

Request a Quote

Available for Rent

Mobile Nav

Specifications

SPECIFICATIONS	INCH	METRIC
Facing Diameter	0 – 12.5″	0 – 317.5 mm
Feed Rate	0 – 0.035 in./rev	0 – 0.889 mm/rev

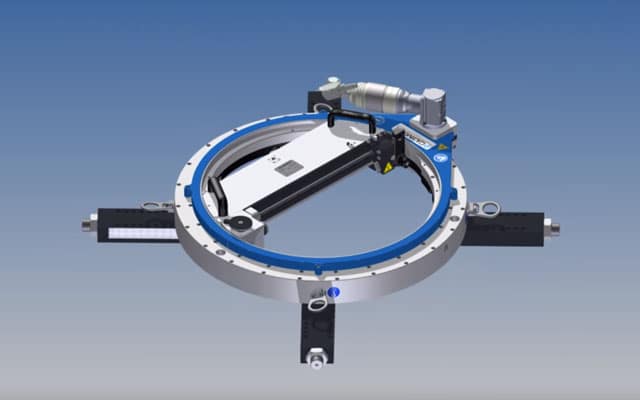

OD Mounting Diameter	2 – 14.1″	50.8 – 358.1 mm
Power Option	Pneumatic	Pneumatic

Product Advantages

Industry-Changing Safety

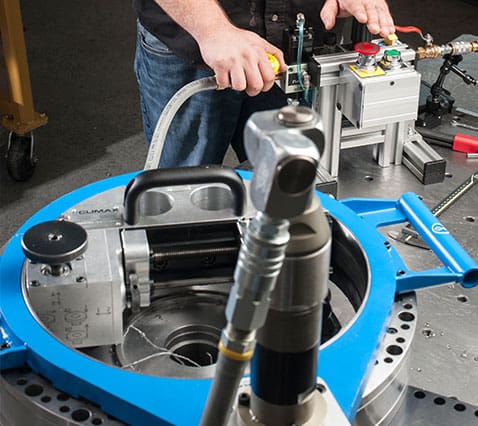

Feed control on the outside of the machine – no more reaching in!

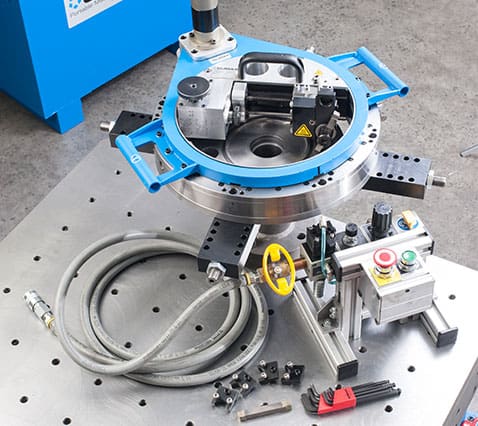

E-stop for quick stops & controlled re-starts

Low pressure drop-out prevent unintended re-starts after loss of supplied air pressure

CE Certified

Flexible and Versatile

1 machine for 7 flange types, no attachments needed
– Flat face
– Raised face
– Ring type joints (RTJ)
– Tongue & groove
– Lens ring
– Grayloc (hub profile)
– Compact flanges

Select from 3 models sized to machine flanges up to 12.5, 24.5 or 36.5 inches (317.5, 622.3 or 927.1 mm) in diameter

Automatic & variable feed come standard on both radial and axial feeds for up to 30% time savings!
… no reaching in means higher RPM machining
… adjust feed rate while machining – no need to stop, change direction, or replace parts
… start & stop feed while machining to machine to a shoulder
… easy machining of various types of materials
… a better surface finish

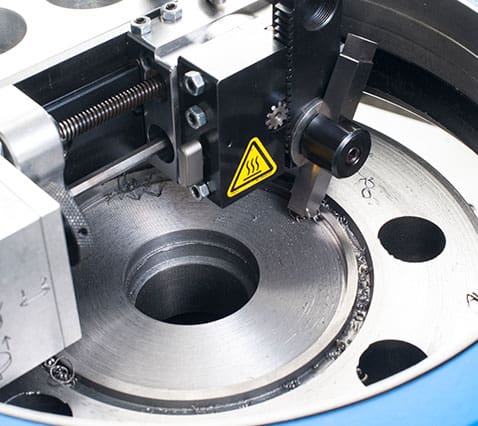

Tool head and tool bit rotate independently, to any angle

Tool head presets at 0°, 23°, and -23°

High Quality, Robust Design

No broken shear pin in an event of a crash – just reset, and keep working

Robust chucking mechanism and unique bearing design provide superior rigidity and machining performance

Smooth-running rotational drive produces a high quality finish
