16 Jan PICTURE OF THE YEAR #9: Mining Electric Rope Shovel Repair

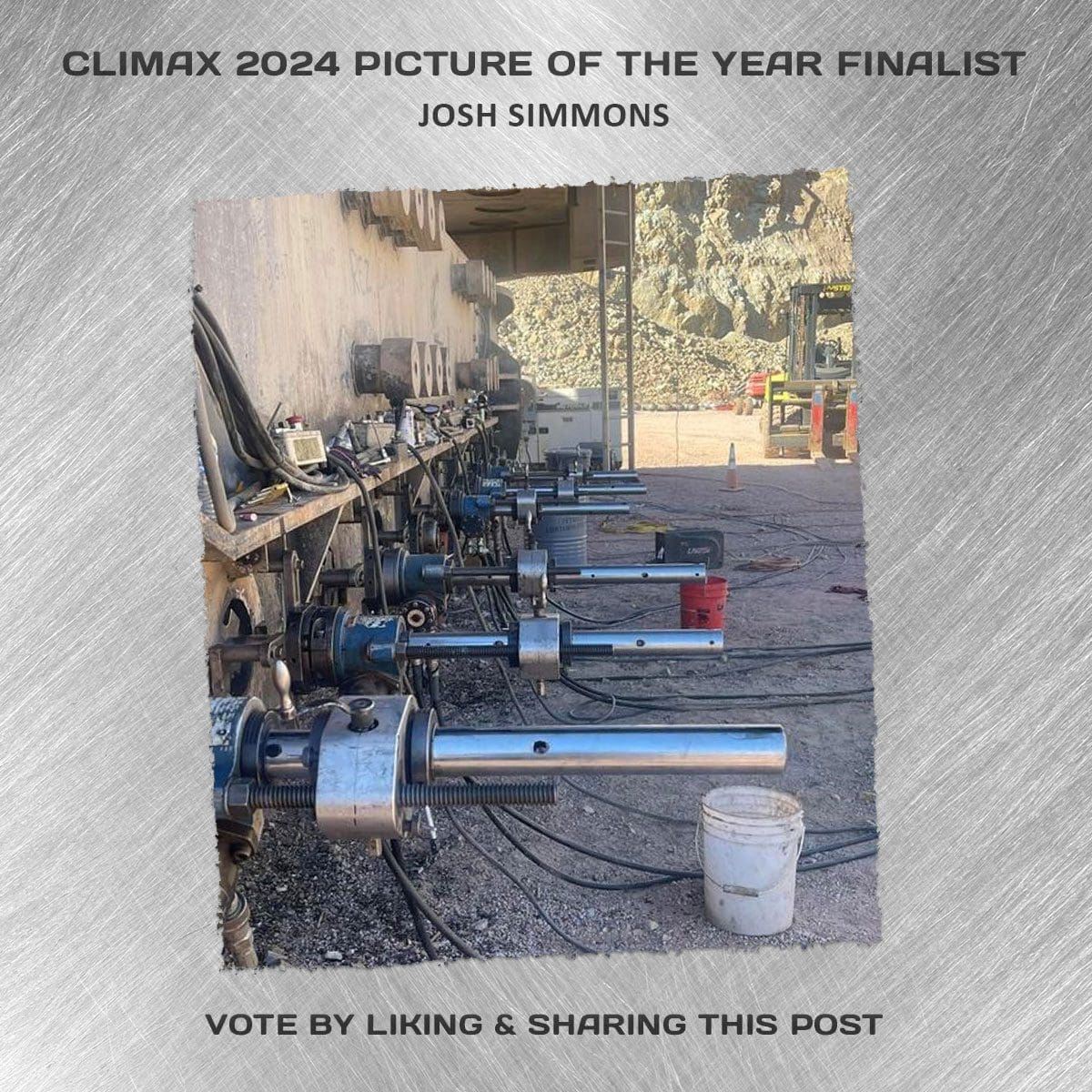

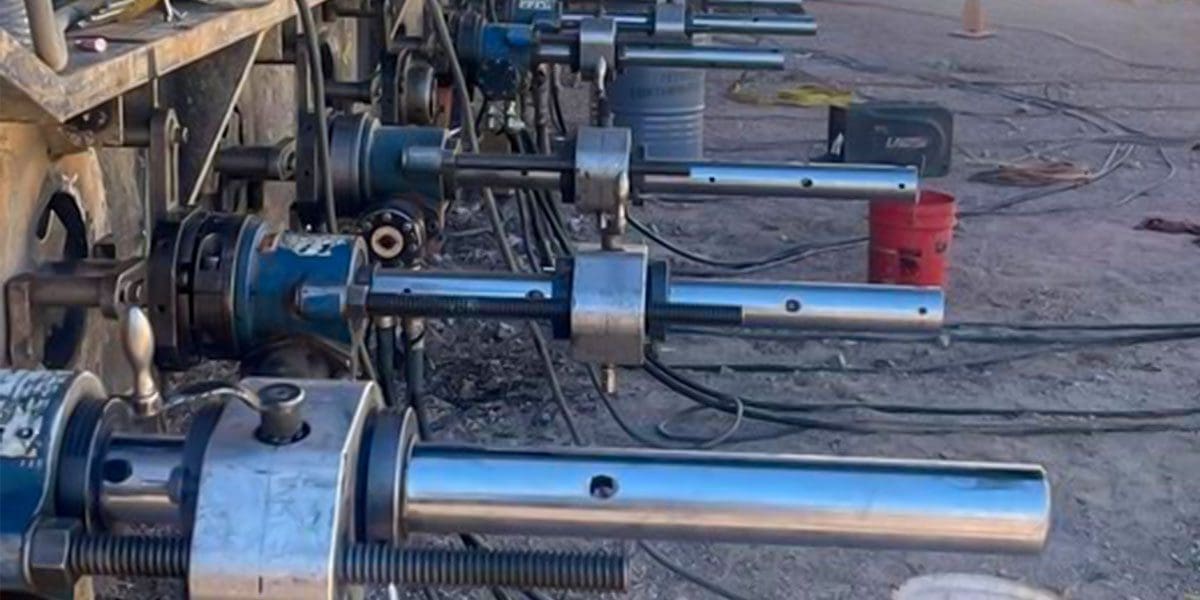

Josh Simmons used six CLIMAX BB5000 units to remachine track frame bores on a P&H 4100XPC Mining Shovel!

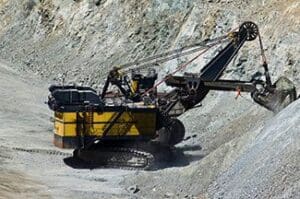

The P&H 4100XPC is a massive electric rope shovel widely used in surface mining operations to move substantial amounts of overburden, ore, or other materials. With a bucket capacity of 100 tons or more, this heavy-duty machine is essential for mining operations involving coal, copper, gold, and iron ore. Its reliability is crucial to maintaining productivity in the mining industry.
VOTE BY LIKING & SHARING THIS POST
Help us pay tribute to on-site machinists and technicians from across the globe with your vote by “liking” and “sharing.” The picture with the most views will WIN our 2024 Picture of the Year. |
The track frames of a P&H 4100XPC Mining Shovel support its enormous weight and provide the mobility needed for repositioning at mining sites. Over time, the bores within the track frames experience wear, deformation, and misalignment due to the extreme operational stresses. Line boring or re-machining the track frame bores is critical to maintaining the shovel’s performance, safety, and reliability, and here’s why:
1. Restoring Alignment
- Problem: Operational stresses, uneven terrain, and wear can cause the track frame bores to become misaligned.
- Impact: Misalignment results in uneven load distribution on the pins, bushings, and rollers, increasing wear and reducing efficiency.
- Solution: Line boring restores the precise alignment of the bores, ensuring smooth operation and even load distribution.
2. Maintaining Structural Integrity
- Problem: Repeated cycles of extreme stress can deform or wear the bore surfaces, compromising the track frame’s structural integrity.
- Impact: Weakened track frames increase the risk of equipment failure and operational downtime.
- Solution: Line boring removes damaged material and restores the bores to their original dimensions, preserving the structural integrity of the track frames.
3. Preventing Excessive Wear on Components
- Problem: Worn or misaligned bores cause uneven forces on track pins, bushings, and rollers, accelerating their wear and reducing their lifespan.
- Impact: This increases maintenance costs and causes more frequent replacement of expensive parts.
- Solution: Remachining ensures the bores are properly sized and aligned, reducing wear on connected components.
4. Enhancing Equipment Mobility
- Problem: Misaligned or damaged bores can lead to binding or uneven movement in the track system, reducing the shovel’s ability to reposition smoothly.
- Impact: This compromises operational efficiency and increases strain on the track system.
- Solution: Line boring restores smooth and even movement, improving the shovel’s mobility and operational efficiency.
5. Improving Safety
- Problem: A damaged or worn track frame increases the risk of catastrophic failure, which could result in accidents or injuries.
- Solution: Regular re-machining of the bores ensures the track frames remain structurally sound, reducing safety risks for operators and maintenance personnel.
6. Ensuring OEM Specifications
- Requirement: Track frame bores must meet original equipment manufacturer (OEM) tolerances to ensure proper performance and reliability.
- Solution: Line boring restores the bores to OEM specifications, maintaining compatibility and performance standards.
7. Minimizing Downtime and Costs
- Problem: Ignoring track frame bore issues can lead to extensive damage, requiring costly repairs and prolonged downtime.
- Solution: Proactive re-machining and line boring minimize the risk of major failures, reducing overall maintenance costs and maximizing uptime.
Process of Line Boring Track Frame Bores:
Step 1: Inspection and Assessment
- Measure the bore to identify the extent of wear, deformation, or damage.
- Determine if bore welding is necessary to restore the bore to specifications.
Step 2: Preparation
- Cleaning:
- Clean the bore to remove dirt, grease, and debris.
- Use grinding or blasting to remove corrosion or damaged material.
- Equipment Setup:
- Install a portable bore welding machine centered within the bore.
- Ensure proper alignment of the welding apparatus for even material deposition.
Step 3: Bore Welding
- Material Selection:
- Choose a filler metal compatible with the parent material of the track frame to ensure structural integrity and durability.
- Welding Process:
- Use automated bore welding equipment to deposit weld material evenly around the circumference of the bore.
- Maintain consistent heat and speed settings to avoid defects such as porosity or uneven buildup.
- Layer Build-Up:
- Apply multiple layers of weld material if necessary, building up the surface to slightly oversize dimensions.
- Cooling:
- Allow the welded bore to cool gradually to prevent thermal stress or cracking.
Step 4: Line Boring
- Setup:
- Install line boring equipment to machine the welded bore to its final specifications.
- Align the boring tool precisely with the centerline of the track frame.
- Machining:
- Remove the excess weld material, restoring the bore to its original diameter, roundness, and alignment.
- Check for smoothness and ensure a uniform surface finish suitable for bearings, bushings, or pins.
- Final Inspection:
- Measure the bore dimensions, alignment, and surface finish to verify compliance with OEM specifications.
- Perform non-destructive testing (NDT), such as ultrasonic or magnetic particle testing, to ensure weld integrity.
Step 5: Reassembly
- Component Installation:
- Install bushings, bearings, or pins into the restored bore.
- Alignment Verification:
- Recheck the alignment and fit of all components to ensure proper operation.
The P&H 4100XPC Mining Shovel is an indispensable tool in surface mining, handling massive workloads with precision and efficiency. Line boring or re-machining the track frame bores is a necessary maintenance step to restore alignment, ensure structural integrity, and prevent excessive wear on critical components. This process not only prolongs the life of the equipment but also enhances safety, reduces downtime, and ensures optimal performance in demanding mining environments. Hat tip to Josh Simmons for sharing this great application photo.
