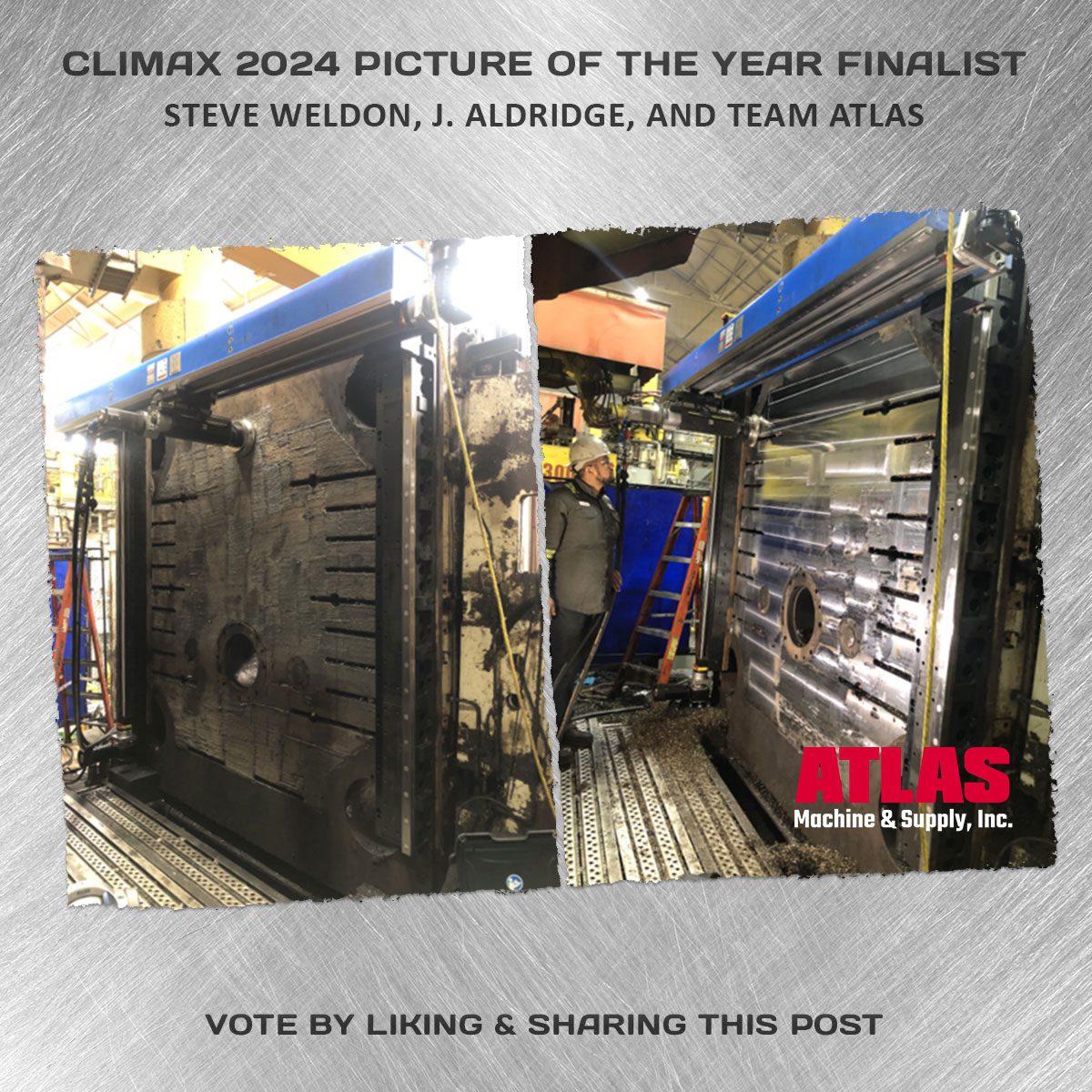

Atlas Machine & Supply in Louisville, Kentucky! Using the CLIMAX LM6200, they expertly machined a 7’ x 7’ automotive cast iron platen that had been repaired with nickel weld. This challenging project required maintaining a tight tolerance, as exceeding zero would compromise the closing gap. By welding and milling the platen back to spec onsite, the team avoided the weeks-long process of disassembly and shipping to a shop, completing the job in less than a week.

VOTE BY LIKING & SHARING THIS POST

Help us pay tribute to on-site machinists and technicians from across the globe with your vote by “liking” and “sharing.” The picture with the most views will WIN our 2024 Picture of the Year.



Automotive cast iron platens are critical components in large manufacturing presses used in automotive plants like those operated by GM and Ford.  Repairing and reconditioning these presses requires welding with nickel weld and then milling.

Why Must They Be Welded with Nickel Weld and Milled?

1. Welding with Nickel Weld

  • Material Compatibility:
    • Cast iron has a high carbon content and is prone to cracking when subjected to traditional welding processes due to its brittleness and susceptibility to thermal stress.
    • Nickel-based welding filler (e.g., nickel rods or nickel wire) is highly compatible with cast iron, offering excellent adhesion and flexibility to minimize the risk of cracking.
  • Heat Expansion Management:
    • Nickel welds have lower thermal expansion than many other weld materials, reducing the likelihood of stress-induced fractures during or after the welding process.
  • Restoring Structural Integrity:
    • Platens may develop cracks, gouges, or worn areas from years of high-pressure use. Welding fills these defects, restoring the platen’s strength and functionality.

2. Milling

  • Precision Restoration:
    • Platens must maintain a flat, level surface within extremely tight tolerances (e.g., zero-gap alignment) to ensure consistent closing and force distribution during press operations.
    • After welding, the added material is uneven and must be milled to restore the flatness and smoothness required for proper operation.
  • Critical for Tight Tolerances:
    • Even slight deviations can cause misalignment, uneven force application, or part defects, making milling essential for maintaining manufacturing quality.

The Process of Welding and Milling Cast Iron Platens

Step 1: Inspection

  • Conduct a thorough visual and non-destructive inspection (e.g., dye penetrant or ultrasonic testing) to identify cracks, wear, or defects.
  • Map out the areas requiring welding and milling.

Step 2: Cleaning

  • Clean the surface to remove grease, dirt, and contaminants.
  • Grind out cracks or damaged areas to prepare for welding.

Step 3: Preheating (if necessary)

  • Preheat the cast iron to minimize thermal stress and reduce the risk of cracking during welding.
  • Maintain a consistent temperature throughout the process.

Step 4: Welding

  • Use nickel-based welding material (e.g., ENiFe-CI rods for manual welding or nickel wire for automated processes).
  • Weld in small sections or beads to control heat input and reduce stress.
  • Allow the material to cool gradually between passes.

Step 5: Stress Relief

  • Perform post-weld heat treatment (PWHT) or controlled cooling to relieve residual stresses in the weld area and surrounding cast iron.

Step 6: Milling

  • Mount a portable milling machine in-situ on the platen.
  • Machine the welded areas to restore flatness, levelness, and tight tolerances.

Step 7: Inspection and Verification

  • Use precision measuring tools (e.g., micrometers, laser alignment systems) to verify flatness and dimensional accuracy.
  • Ensure the platen meets OEM specifications for zero-gap tolerance.

Step 8: Reassembly and Testing

  • Reinstall the platen in the press and perform test operations to confirm proper functionality and alignment.

Automotive cast iron platens are essential for producing high-quality parts in large manufacturing presses. Welding with nickel-based materials and precision milling are necessary to repair damage while maintaining the critical tight tolerances required for proper operation. This process ensures the platens remain structurally sound, precise, and cost-effective for continued use in demanding automotive manufacturing environments.  Congratulations to Atlas Machine & Supply for capturing a great picture of this application!
