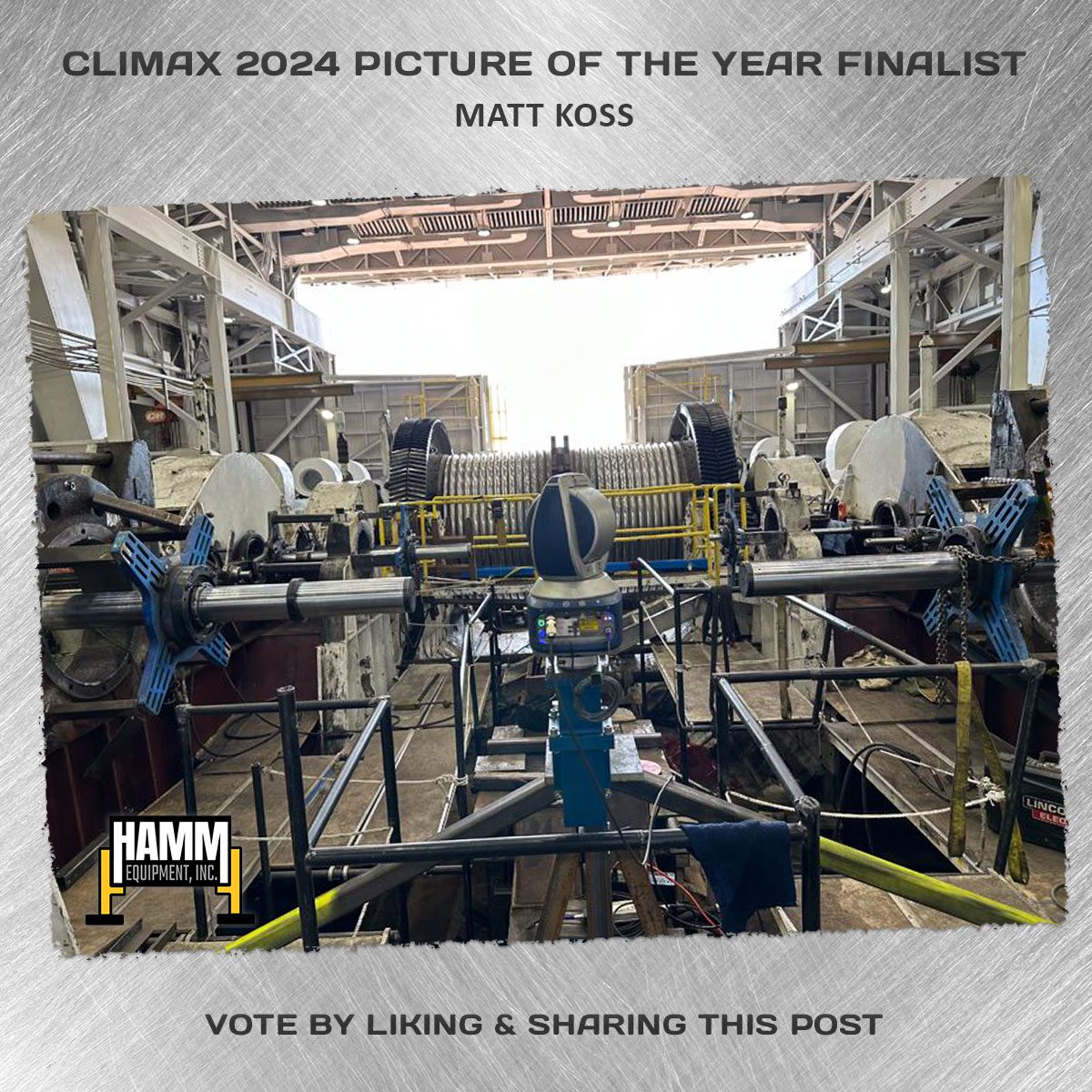

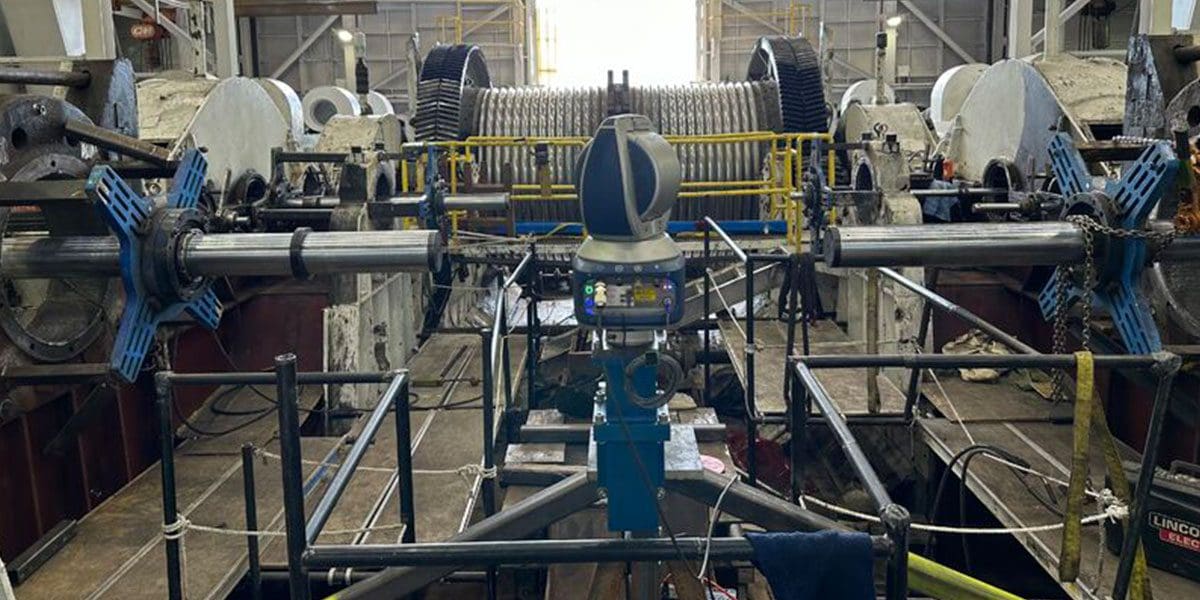

HAMM Equipment in Casper, Wyoming, used 8 Line Boring setups to rebuild the entire hoist case of a Bucyrus (Caterpillar) 2570 Hoist Case.

They utilized 8”, 5”, 3.5”, and 2.25” boring bars, with each of the four cases requiring three line boring setups. The drum bores were re-machined using the CLIMAX BB8100 line boring machine, and all bars were precisely aligned using HAMM’s optical equipment to ensure proper alignment.

Re-machining the bores of dragline hoist case and drum bores ensures proper function, reliability, and longevity of these essential dragline components in heavy-duty mining and excavation operations, and here is why:

1. Restoring Precise Alignment

• Importance: Misaligned bores can cause the shaft and drum to run unevenly, leading to increased wear, vibration, and inefficiency.
• Result: Line Boring ensures that the bores are properly aligned with the shaft and other critical components, maintaining the structural and operational integrity of the dragline.

2. Eliminating Wear and Deformation

• Problem: Over time, hoist cases and drum bores are subject to heavy loads, causing wear, distortion, or ovality.
• Solution: Machining restores the bores to their original dimensions and shape, eliminating uneven surfaces that could lead to premature failure.

3. Preventing Excessive Wear on Components

• Issue: Worn or misshapen bores lead to improper seating of bearings and bushings, causing uneven load distribution.
• Benefit: Properly machined bores reduce stress on associated parts like bearings, shafts, and gears, extending their lifespan.

4. Enhancing Load Handling Capacity

• Challenge: Draglines operate under extreme loads, and compromised bores weaken the system’s ability to handle these forces efficiently.
• Advantage: Restored bores maximize load-handling capacity, improving the overall performance of the dragline.

5. Improving Safety

• Risk: Improperly machined or worn bores can lead to equipment failure, posing significant safety risks for workers and equipment.
• Outcome: Machining the bores minimizes the risk of catastrophic failure, ensuring safe and reliable operation.

6. Ensuring Smooth Operation

• Problem: Misaligned or damaged bores result in increased friction, vibration, and noise during operation.
• Solution: Precision machining ensures smooth rotation of the drum and proper interaction with hoist components, improving efficiency and performance.

7. Maintaining Manufacturer Specifications

• Importance: Rebuilt components must meet or exceed original equipment manufacturer (OEM) specifications.
• Impact: Machining ensures that the bores are restored to exact tolerances, ensuring compatibility and performance within the dragline system.

8. Reducing Downtime and Costs

• Consideration: Neglecting bore re-machining can result in frequent breakdowns, increased maintenance costs, and extended downtime.
• Benefit: A properly re-machined hoist case and drum bores improve reliability, reducing operational interruptions and overall costs.

Process Overview

1. Inspection: Measure bore dimensions and check for wear, deformation, or cracks.
2. Machining: Use precision line boring equipment to restore the bores to their original specifications.
3. Alignment Verification: Ensure all bores are aligned with the shaft and other components.
4. Post-Machining Inspection: Confirm dimensions, tolerances, and surface finish meet requirements.

By re-machining the bores of a dragline hoist case and drum bores, you ensure the rebuilt dragline operates safely, efficiently, and reliably, making this a critical step in the rebuilding process. Congratulations to HAMM Equipment for capturing this process!
