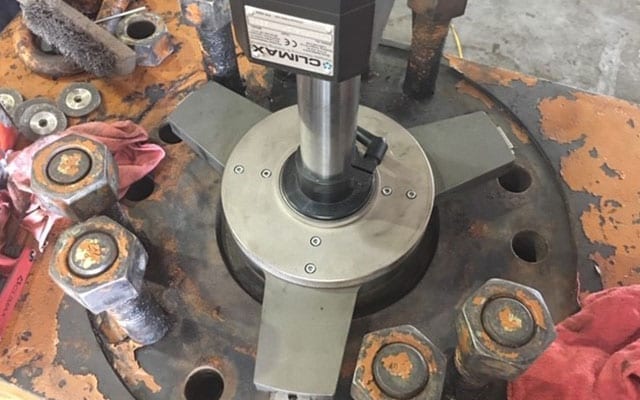

Une série de neuf configurations à la fois robustes et compactes conçues pour la rectification et le rodage rapide et précis de soupapes à boulet à siège plat ou conique. Tous les modèles offrent une gamme de diamètre et la possibilité de changer facilement et rapidement les disques et d’ajuster la pression de meulage pendant le fonctionnement.
Modèle
Plage de Travail
Profondeur
Type de Vanne
Source d’énergie
VM2050C
0.4 – 2 in.
(10 – 50 mm)
10 in.
(250 mm)
Robinet à soupape (sièges coniques)
Electrique ou pneumatique
VM2100C
0.4 – 4 in.
(10 – 100 mm)
10 in.
(250 mm)
Robinet à soupape (sièges coniques)
Electrique ou pneumatique
VM2150C
0.4 – 6 in.
(10 – 150 mm)
18 in.
(450 mm)
Robinet à soupape (sièges coniques)
Electrique ou pneumatique
VM2150
DN3/8 – DN6 in.
(DN10 – DN150 mm)
20 in.
(500 mm)
Robinet à soupape (sièges coniques)
Electrique ou pneumatique
VM2150SV
0.4 – 6 in.
(10 – 150 mm)
20 in.
(500 mm)
Robinet à soupape (sièges coniques)
Electrique ou pneumatique
VM2150SLV
0.4 – 6 in.
(10 – 150 mm)
20 in.
(500 mm)
Robinet à soupape (sièges coniques)
Electrique ou pneumatique
VM2350
3 – 14 in.
(80 – 350 mm)
24 in.
(600 mm)
Robinet à soupape (sièges plats)
Electrique ou pneumatique
VM2500
3 – 20 in.
(80 – 500 mm)
31 in.
(800 mm)
Robinet à soupape (sièges plats)
Electrique ou pneumatique
VM2600
3 – 24 in.
(80 – 600 mm)
31 in.
(800 mm)
Robinet à soupape (sièges plats)
Electrique ou pneumatique
Installation rapide et facile :
Il suffit de dévisser une simple vis de serrage pour basculer entre moteur pneumatique et électrique.
Les disques de support ont un adhésif spécifiquement formulé pour que la prise soit ferme pendant l’utilisation mais facile à retirer après.
Trois mandrins et adaptateurs pour le montage sur le diamètre intérieur ou extérieur du corps de vanne ou sur les goujons.
Rigide :
Des roues larges et un design palmé confèrent une rigidité accrue au système et permettent de conserver la planéité quelle que soit la pression de meulage.
Polyvalent :
Cinq disques abrasifs pour garantir un contact constant avec le siège et pouvoir meuler parfaitement plat.
Les roulements des bras porte-plateaux radiaux sont étanches, préchargés, et ajustés pour être à 0,002 mm (0,000079 po) les uns des autres sur une surface plane.
Toutes les machines à soupapes sont fournies avec un jeu complet (entre 800 et 1 200 pièces) de disques abrasifs de toutes tailles et de tous grains.
Profondeur de submersion jusqu’à 800 mm (31 po) sur les machines standard.
Vaste gamme de diamètres de siège, de 10 à 600 mm (0,4 à 24 po).
Sécurité :
Certifié CE et disponible dans le monde entier ! Toutes les machines de rectification et de rodage sont disponibles à la vente partout dans le monde, y compris en Europe et dans d’autres pays où la certification CE est requise.

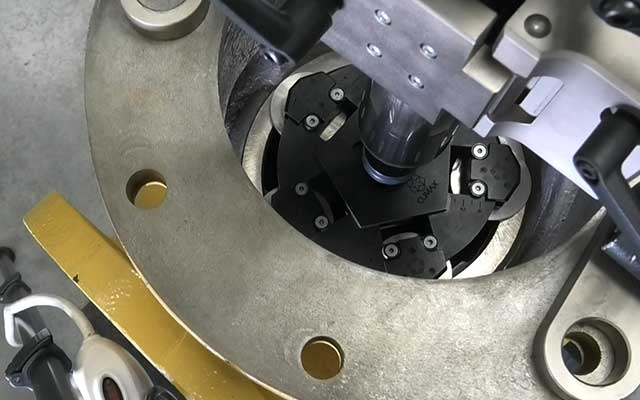

VM23050 Valve Grinding and Lapping Zoom Demo
