Discover our industry-leading pipe cutting and beveling machines, designed for precision and performance across a wide diameter range—from 1″ to 120″ o/d (25–3,050 mm). Ideal for external and internal beveling, counter-boring, compound bevels, and J-prep applications, our machines handle all types of steel and exotic alloys. Choose from pneumatic, electric (110v/220v), hydraulic, or servo electric power options. Whether you need compact solutions for small pipes or heavy-duty split-frame clamshells for large diameters, we offer both standard and customized machines to suit your job. These machines are a reliable choice for a wide range of industrial applications.
Split Frame Clamshell Cold Cutting & Beveling Machines
Pipe Cutting & Beveling Range: 1″ – 120″ O.D. (25 – 3,050 mm)

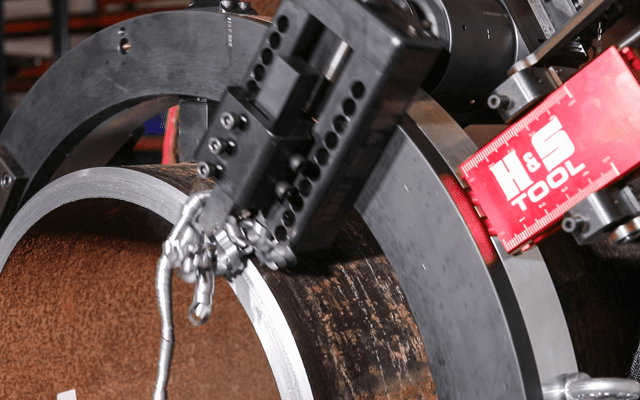

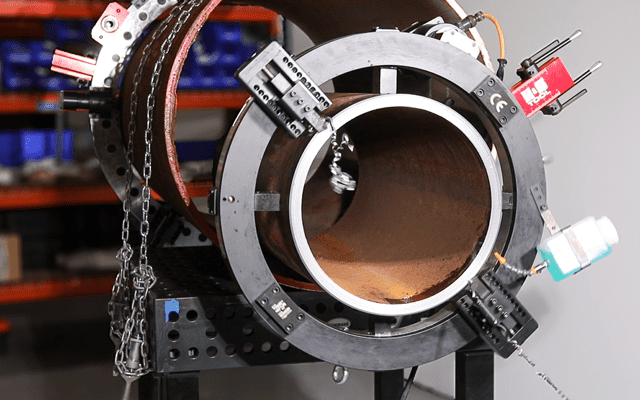

The H&S TOOL Split Frame Clamshell Machine is a rugged, precision-engineered pipe cutting and beveling machine designed for cold cutting operations on-site or in the workshop. With a full range of models and power options—including NC Servo Electric, pneumatic, hydraulic, and standard electric—this tool delivers performance, flexibility, and accuracy in demanding pipe prep environments.
Whether you’re performing maintenance, decommissioning, or fabrication, this clamshell pipe cutter delivers the flexibility, control, and performance needed for high-quality results.
POWERFUL PERFORMANCE
Robust Mechanical Design: Lightweight, aircraft-grade aluminum frame houses a durable steel inner ring gear, supported by advanced cam roller bearings for smooth, precision rotation and long service life.
Wide Power Drive Options:
Torque-Free Operation: The split frame locks around the pipe externally, ensuring stable, secure operation without torque kickback or external supports.
Quick-Split Hinge Design: Speeds up setup around inline pipe and vessels—ideal for field conditions where downtime matters.
H&S TOOL Advanced Feed System: Worm-and-crown mechanism evenly distributes force during cutting, minimizing vibration and wear on tooling. Especially important for precision applications using this split frame pipe cutter.
VERSATILITY
Multi-Function Capability: Designed for cold cutting, external and internal beveling, facing, compound bevels, J-prepping, and counterboring, all with one adaptable platform.
Tool Slide Options:
Material Flexibility: This portable pipe cutting machine is built to cut carbon steel, stainless steel, and even exotic alloys, making it the ideal solution for demanding applications in the oil & gas, power generation, petrochemical, and offshore industries.
Clamping Systems:
RELIABILITY
Durable Build Quality: High-grade materials and heat-treated components resist wear and corrosion, ensuring long-term use in harsh environments.
Quick and Accurate Setup:
Cam Roller Bearing System: Ensures consistent, smooth rotation with fine adjustment for optimal feed rates and long life.
Universal Drive Mounting: All motor types—pneumatic, hydraulic, electric, and NC servo—mount via the same two-bolt drive block, allowing quick changeovers.
Custom Foam-Lined Metal Storage Box: Included with machines up to TSFC24, providing safe storage and transport.
TOOLING OPTIONS
Standard & Custom Tooling:
All Tooling Configurations Available:
LITERATURE
Coming soon!
ACCESSORIES
OPERATOR MANUAL
Coming soon!
Split Frame Clamshell Machine

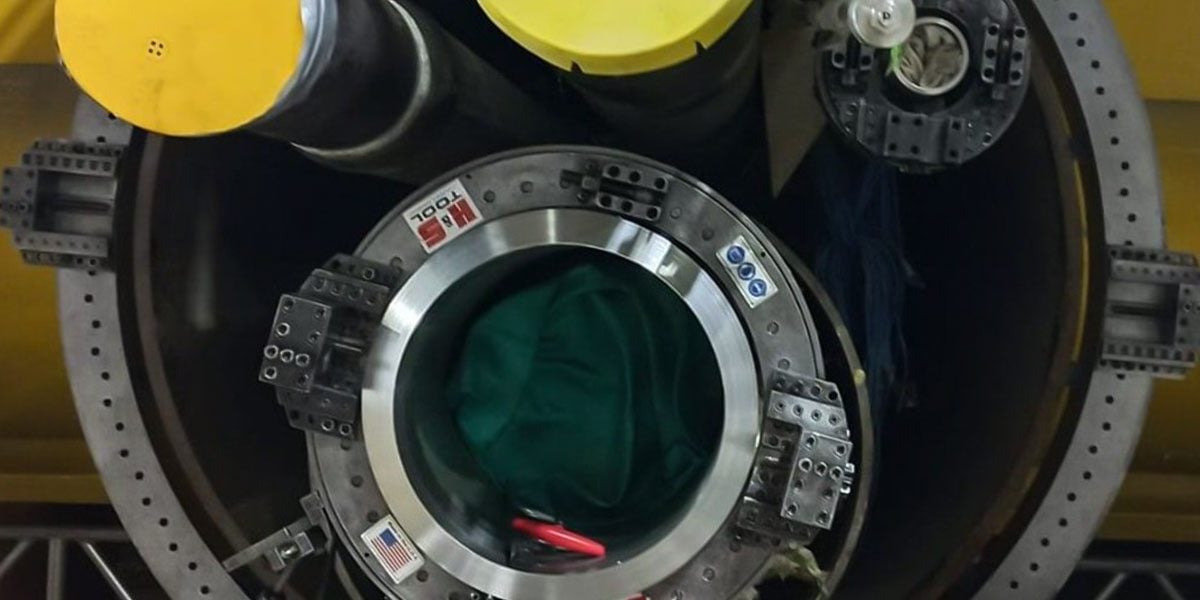

At H&S TOOL, we take pride in seeing our equipment in action across a variety of demanding environments. This week, we’re spotlighting ongoing work from REEKIE Machining, a trusted field machining provider based in the United Kingdom, showcasing the power and precision of H&S TOOL split frame clamshell...
