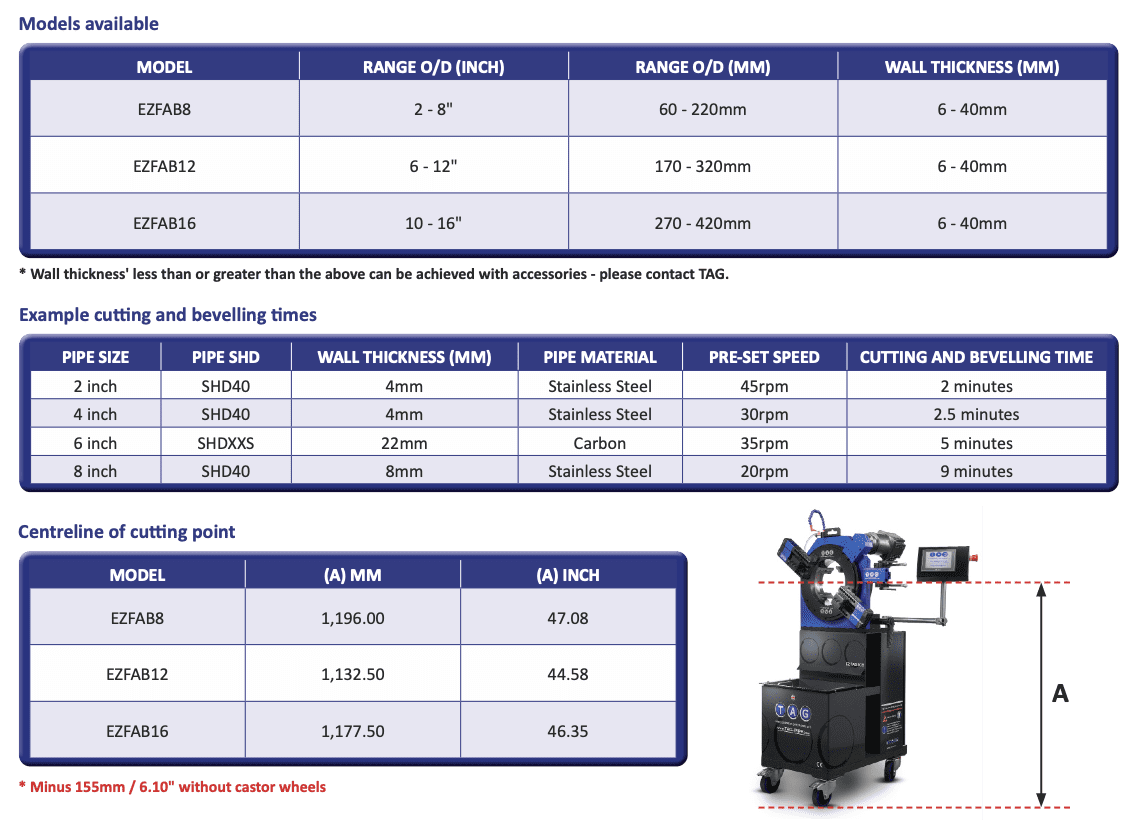

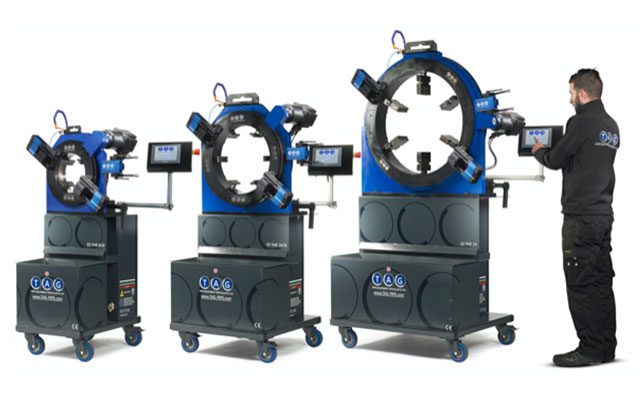

The E-Z FAB is a revolutionary new pipe cutting and beveling system designed for high-speed process environments. With a cutting range of 2″ to 16″ O.D. (60 mm to 420 mm), it is ideally suited, but not limited, to workshops and high-productivity applications.

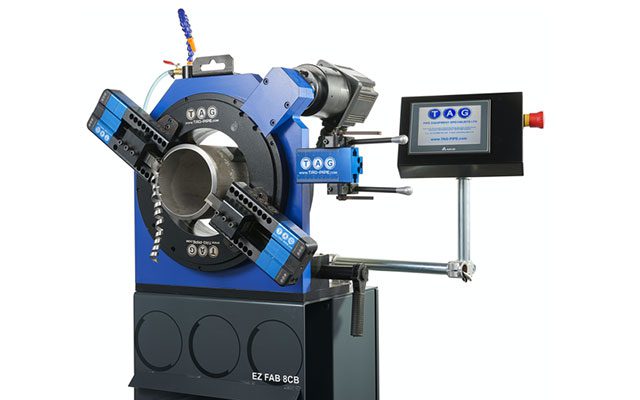

Featuring a unique touch screen NC servo electric drive, the E-Z FAB combines accuracy with safety, offering several automation modes to suit a variety of operational needs. Capable of cutting any material and fully customisable to your requirements, it delivers flexibility without compromising performance. Unlike traditional clamshell split frame machines, the E-Z FAB’s one-piece rotating inner ring is housed within a cast outer body, ensuring exceptional strength, rigidity, and speed. Driven by a powerful 1.5 kW servo electric motor, the system maintains high-speed rotation while delivering a stable, precise cut every time.
Advanced Cold Pipe Cutting & Beveling Technology
The TAG E-Z FAB Pipe Cold Cutting and Beveling Machine is a revolutionary system engineered for high-speed, high-precision pipe fabrication. Designed for use in both workshop and high-productivity process environments, this machine combines the robust strength of a stationary system with the flexibility and convenience of a portable pipe cutting machine.
Operator-Focused Design for Safety and Efficiency

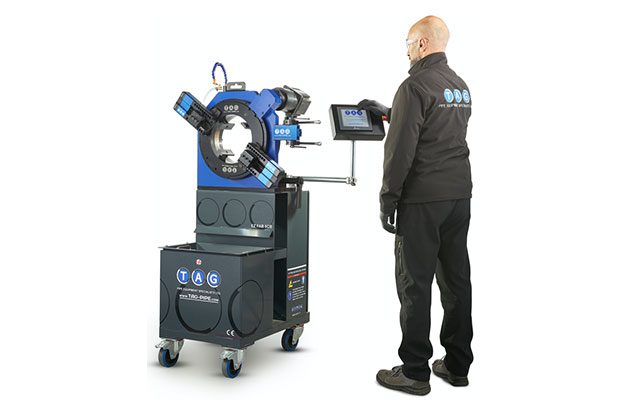

From its intuitive controls to its robust construction, the E-Z FAB was built with operators in mind, offering easy handling, minimal maintenance, and repeatable accuracy across all pipe sizes and materials.
Maximum Versatility for Pipe Fabricators
Whether you’re working with thin-walled stainless or heavy-duty carbon steel, the E-Z FAB delivers unmatched flexibility with a broad range of cutting and beveling capabilities.
