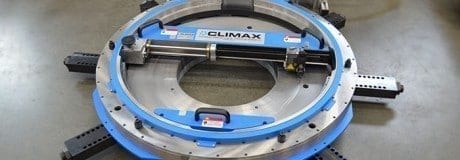

FF3600 OD Mount Flange Facer

Unrivaled in capability for its size, this robust OD Mount Flange Facer can machine flanges up to 36.4 inches (924.6 mm) in diameter without any attachments. Like the other CLIMAX OD Mount Flange Facers, The FF3600 OD Mount Flange Facer machine comes standard with infinitely variable feed rates that can be adjusted while the machine is running, maximizing the user’s ability to perform even in the most challenging environments within the oil and gas, power generation, and shipbuilding & repair industries.

Contact us today for more information.

Our product line has grown to exceed over 40 on-site machine tools: line boring machines, bore welders, flange facers, portable mills, and advanced valve testing systems. Additionally, to support our global customer base we have well over 2,500 tools available in our rental fleet.

Rental Brochure

Request a quote!

Facing Diameter:
0 – 36.5 inches (0 – 927.1 mm)

Milling Diameter:
N/A

ID Mounting Diameter:
N/A

OD Mounting Diameter:
20 – 38 inches (508 – 965.2 mm)

Power Option:
Pneumatic

Industry-Changing Safety

Feed control on the outside of the machine – no more reaching in!

E-stop for quick stops & controlled re-starts

Low pressure drop-out prevent unintended re-starts after loss of supplied air pressure

CE Certified

Flexible and Versatile

1 machine for 7 flange types, no attachments needed
– Flat face
– Raised face
– Ring type joints (RTJ)
– Tongue & groove
– Lens ring
– Grayloc (hub profile)
– Compact flanges

Select from 3 models sized to machine flanges up to 12.5, 24.5 or 36.5 inches (317.5, 622.3 or 927.1 mm) in diameter

Automatic & variable feed come standard on both radial and axial feeds for up to 30% time savings!
… no reaching in means higher RPM machining
… adjust feed rate while machining – no need to stop, change direction, or replace parts
… start & stop feed while machining to machine to a shoulder
… easy machining of various types of materials
… a better surface finish

Tool head and tool bit rotate independently, to any angle

Tool head presets at 0°, 23°, and -23°

High Quality, Robust Design

No broken shear pin in an event of a crash – just reset, and keep working

Robust chucking mechanism and unique bearing design provide superior rigidity and machining performance

Smooth-running rotational drive produces a high quality finish
