PM4200 MILLING MACHINE

The PM4200 features longitudinal power feed with cross travel controlled manually. Attachable to the workpiece or to a support structure. Choose X-axis travel up to 20, 49, or 78 inches (508.0, 1244.6, or 1981.2 mm).

Our product line has grown to exceed over 40 on-site machine tools: line boring machines, bore welders, flange facers, portable mills, and advanced valve testing systems. Additionally, to support our global customer base we have well over 2,500 tools available in our rental fleet.

Rental Brochure

Request a quote!

Max. X-Axis Travel:
20, 49 or 78 inches (508.0, 1244.6 or 1981.2 mm)

Max. Y-Axis Travel:
8 inches (203.2 mm) w/ Weldon, 12 inches (304.8 mm) w/ HSK

Max. Vertical Travel:
3 inches (76.2 mm) w/ Weldon Spindle, 4 inches (101.6 mm) w/ HSK Spindle

Spindle Size:
0.75 inch (19.1 mm) Weldon, 40A (HSK)

Power Option:
Electric, Pneumatic, or Hydraulic

Quality Machine Design with Power-Packed Performance

Precision machined dovetail ways and adjustable gibs provide smooth accurate travel.

All gears and drives are permanently lubricated and sealed to allow operation in any position.

Powerful

Hydraulic, pneumatic, and electric motors are available to provide power for milling spindle.

Feed options include manual, electric, and pneumatic.

Optional HSK spindle.

Versatile

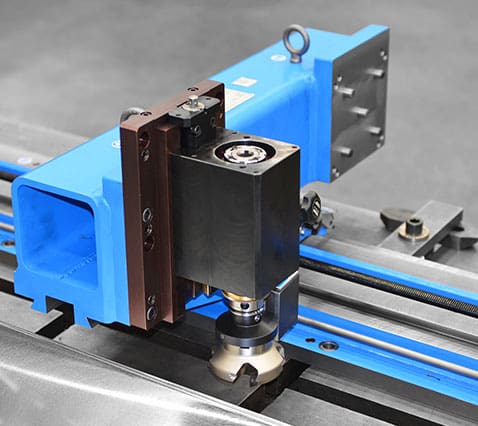

Two different milling head options are available; the 3⁄4-inch Weldon shank spindle, and the flexible HSK 40A spindle.

120V and 230V electric feed options are available in addition to manual feed for fine adjustment.

The electric feed option provides infinitely variable rates from 0 to 20 IPM, with push-button rapid traverse.

Forward, neutral and reverse modes are controlled by a simple shift lever.

Rigid and Durable

Compact yet rigid design for hard to reach and limited clearance applications.

Flexible

Cross slide allows mounting of milling spindle on either side of the bed.

An extended ram may be used in conjunction with the more powerful and versatile HSK spindle.

The optional HSK milling head swivel plate accessory allows 360° range of spindle angles.

Optional sub-plates are available for extra bed rigidity and installation versatility.

Quick and Easy Setup

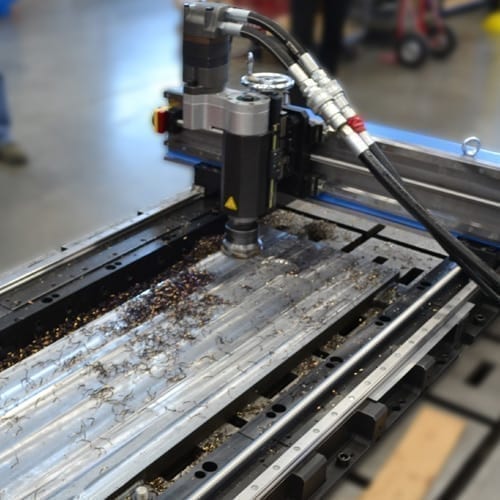

The PM4200 3-axis portable milling machine provides precise and versatile on the job milling capabilities.

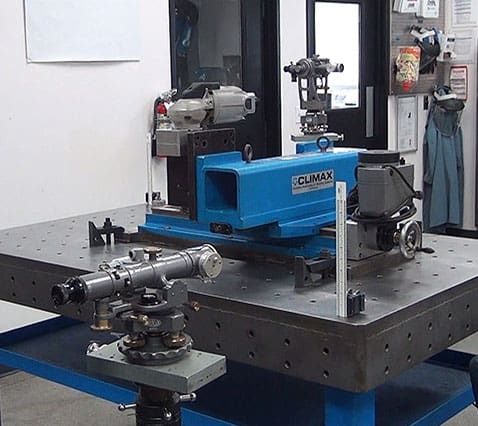

It is designed to be attached either to the work piece or to a support structure beside it.

Beds are available in 20, 49 and 78 inch (508, 1244.6 and 1981.2 mm) travel.

Applications Include:

The PM4200 is commonly used for milling large cumbersome parts.

Many customers use the PM4200 machines when welding up and re-machining worn parts on production machinery like stamping presses.

Long motor mount slots are easily machined, often without dismantling since the mill can be mounted right on the workpiece.

Motor mounts and pump bases are easily machined, especially in tight locations.
