LM5200 Linear Gantry Mill

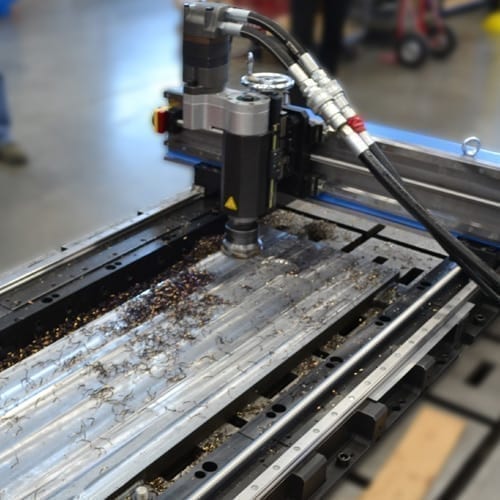

Like nothing on the market today, the CLIMAX LM5200 Linear Gantry Mill is a highly configurable milling machine designed for unmatched flexibility in linear or gantry milling applications. Its modular bed system allows the machine length to be expanded from 48 to 96 inches (1219.2 to 2438.4 mm) while maintaining rigidity, delivering 36 to 84 inches (914.4 to 2133.6 mm) of travel. This adaptability makes the LM5200 ideal for precision milling on large or complex workpieces in challenging environments.

As a portable milling machine, the LM5200 can be configured in nearly any orientation to meet diverse machining requirements in the field or shop. Operators benefit from maximum versatility without sacrificing accuracy or stability, and solid bed options are available for applications requiring additional rigidity. The LM5200 is engineered to reduce setup time, increase productivity, and handle a wide range of milling tasks with confidence.

Request a Quote

Available for Rent

Mobile Nav

Specifications

SPECIFICATIONS	INCH	METRIC
Max. X-Axis Travel	84″	2133.6 mm
Max. Y-Axis Travel	34″	863.6 mm
Max. Vertical Travel	4″	101.6 mm
Spindle Size	4 – 6″	101.6 – 145.4 mm
Power Option	Hydraulic	Hydraulic

Product Advantages

The CLIMAX LM5200 Milling Machine revolutionizes both the capabilities and functionality of portable mills. Four main features make this one of the best milling machines on the market today:

Rigid, Modular Design

Unique modular bed design allows shorter bed sections to be combined to fit the length of the work area without losing rigidity.

Unique bed length section design provides superior rigidity across the entire bed length.

Connection plates and fasteners optimized to provide the ultimate in rigidity, even when bed is extended by 2 or 3 times the original length.

Flexible Configuration & Operation

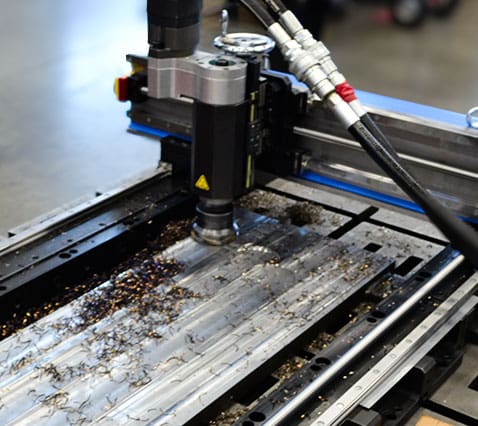

The innovative new design of these CLIMAX Milling Machines allow them to be configured for traditional linear milling, or simply split the rails lengthwise to configure for gantry milling!

Electric feeds can be mounted on the X, Y or Z axis.

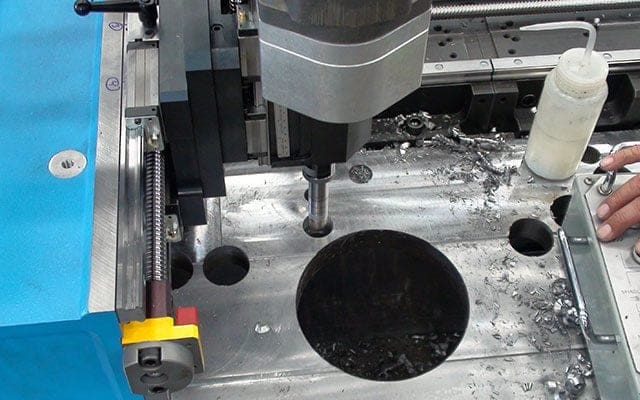

Machining capabilities include milling, drilling and even boring.

Powerful, Precise Machining

Features heavy duty spindle design and a choice of Hydraulic Power Units – a 10 Hp (7.5 kW) HPU allows use of cutter heads of up to 6 inches (152.4 mm) in diameter.

Milling can be done in any axis, with a milling head that can rotate 360° with an optional swivel plate for optimal spindle flexibility.

Fast, aggressive milling in horizontal, vertical, or inverted applications.

Provides reliable, precise milling to meet tight machining tolerances in both linear and gantry mill configurations.

Reduced Friction Rail Technology

Reduced friction rail system allows extremely smooth, continuous, and non stick-slip travel.

Precisely machined and aligned rails with advanced lubrication make machining applications smooth and efficient.

Low friction system reduces maintenance costs and extends product life.

Precision ball screws in X, Y and Z- axis assemblies allow precise location of milling head.
