Milling Machines

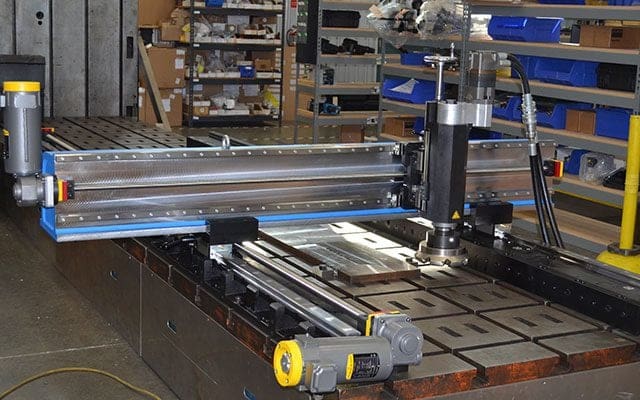

Wherever equipment repair applications involve milling critical mounting surfaces, we have a precision machine that can be perfectly configured to fit. Our portable three-axis milling machine family starts with the PM4200 – a versatile model with available bed options of 20, 49 or 78 inches (508, 1244.6 and 1981.2 mm) of travel. Our largest mill, the LM6200, features the ability to configure for linear AND gantry milling, with up to 176 inches (4470.4 mm) of x-axis travel and 106 inches (2692.4 mm) of y-axis travel. There is plenty of spindle torque for fast metal removal and the capacity to mill in nearly any position.
| SPECIFICATIONS | INCH | METRIC | |||
| Max. X-Axis Travel | 20, 49 or 78 in. | 508.0, 1244.6 or 1981.2 mm | |||
| Max. Y-Axis Travel | 8 / 12 in. | 203.2 mm w/ Weldon 304.8 mm w/ HSK | |||
| Max. Vertical Travel | 3 / 4 in. | 76.2 mm w/ Weldon Spindle 101.6 mm w/ HSK Spindle | |||
| Spindle Size | 0.75 in. | 19.1 mm Weldon, 40A (HSK) | |||
| Power Option | Electric, Pneumatic, or Hydraulic | Electric, Pneumatic, or Hydraulic |
| SPECIFICATIONS | INCH | METRIC | |||
| Max. X-Axis Travel | 84 in. | 2133.6 mm | |||
| Max. Y-Axis Travel | 34 in. | 863.6 mm | |||
| Max. Vertical Travel | 4 in. | 101.6 mm | |||
| Spindle Size | 4 – 6 in. | 101.6 – 145.4 mm | |||
| Power Option | Hydraulic | Hydraulic |
| SPECIFICATIONS | INCH | METRIC | |||
| Max. X-Axis Travel | 176 in. | 4470.4 mm | |||
| Max. Y-Axis Travel | 106 in. | 2692.4 mm | |||
| Max. Vertical Travel | 8 in. | 203.2 mm | |||
| Spindle Size | 4 – 10 in. | 101.6 – 254.0 mm | |||
| Power Option | Hydraulic | Hydraulic |
