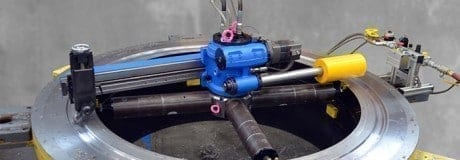

FF6300 FLANGE FACER

Performance, versatility and safety. Delivers high-torque performance to quickly re-surface flanges and repair sealing and bearing surfaces efficiently and cost-effectively. Can be configured in either ID, OD, or surface-mount configurations for a variety of machining applications, with a quick and easy change over. Facing diameters range from 11.8 to 60 inches (299.7 to 1524.0 mm).

Our product line has grown to exceed over 40 on-site machine tools: line boring machines, bore welders, flange facers, portable mills, and advanced valve testing systems. Additionally, to support our global customer base we have well over 2,500 tools available in our rental fleet.

Rental Brochure

Request a quote!

ID Facing Diameter:
11.8 – 60 inches (299.7 – 1524.0 mm)

Milling Diameter:
N/A

ID Mounting Diameter:
11.8 – 57.5 inches (299.7 – 1460.5 mm)

OD Facing Diameter:
8.5 – 60 inches (215.9 – 1524.0 mm)

OD Mounting Diameter:
38.1 – 63.8 inches (967.7 – 1620.5 mm)

Power Option:
Pneumatic or Hydraulic

IMPROVED EFFICIENCY AND OPERATIONAL FLEXIBILITY

Extended machining range, from 12 – 60 inches (304 – 1524 mm) provides more flexibility – one machine for many applications.

Varible feed rate control allows operators to easily adjust the feed rate of the cutting tool.

ID, OD, or surface-mount configurations are available for a variety of machining applications, with a quick and easy change over.

Chain-clamp assembly securely clamps OD-mount configurations to eliminate the need to weld for mounting.

Tool head and tool bit rotate 360˚, which allows for machining and positioning at an angle. This provides flexibility to create a variety of cuts including chamfers, O-Ring grooves, lens rings and other angular surfaces.

Back-facing attachment option provides even more flexibility in machining operations for heat exchanger tube sheets and other applications.

Modular components and overall lighter weight make setup, transport and storage quick and easy.

Hydraulic or pneumatic drive options allow flexibility for a variety of working conditions.

RUGGED DESIGN FOR POWERFUL, PRECISE MACHINING PERFORMANCE

Heavy-duty bearings provide rigid performance and reliable results, even over bolt-hole patterns.

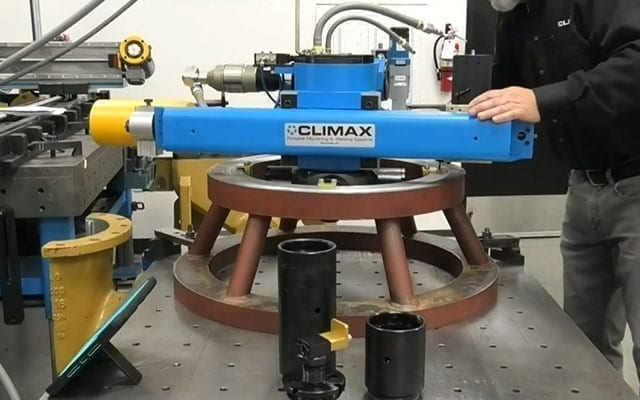

Chucking system with leveling feet allows for quick and easy setup.

Modular chuck can be mounted separate from the machine body, makes accurate setup quick & easy.

The worm gear drive system runs smoothly and provides low backlash even with interrupted cuts. High-torque power allows higher metal removal rates.

REDUCING OPERATOR RISK

Remote on/off control of the feed system keeps operators hands away from moving parts.

Multiple lifting points for lifting in all orientations simplify balancing and rigging challenges for easy machine positioning.
