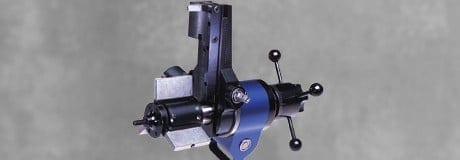

FF4000 Flange Facer

Designed for machining mid-sized diameter raised face and flat pipe flanges or beveling pipe with optional beveling head. Sets up in less than 10 minutes and delivers enough power to remove one cubic inch of metal per minute. Facing diameters range from 3 to 19 inches (76.2 to 482.6 mm).

Our product line has grown to exceed over 40 on-site machine tools: line boring machines, bore welders, flange facers, portable mills, and advanced valve testing systems. Additionally, to support our global customer base we have well over 2,500 tools available in our rental fleet.

Rental Brochure

Request a quote!

Facing Diameter:
3 – 19 inches (76.2 – 482.6 mm)

Milling Diameter:
N/A

ID Mounting Diameter:
3 – 12.5 inches (76.2 – 317.5 mm)

OD Mounting Diameter:
N/A

Power Option:
Pneumatic

Compact and Versatile

Low profile machine is one of the most compact on the market today.

Lightweight, weighing only 58 lbs (26.3 kg).

Modular design and versatile setup allows the chuck and main body to be set up separately before placement in the bore.

Machine raised and flat flanges.

Bi-directional feed.

Feed is reversible and infinitely variable for a surface finish of 63 – 500 RMS.

Optional beveling head connects with “Quick-Lock” system, making changeover quick & easy.

Powerful, Quality Components

1.45 Hp (1.08 kW) motor allows typical material removal rate of 1 cubic inch (16.4 cm3) per minute.

Pneumatic motor comes complete with filter, lubricator, and flow control.

Features rugged main body, heavy-duty bearings, sealed lubrication, and rigid mounting system.

Cost Effective

Cuts costs in four ways:
– Reduces downtime.
– Eliminates off-site machining costs.
– Eliminates leak sealing procedures.
– Reduces stock of replacement flanges.

Recoup the cost of a CLIMAX Flange Facer in the first few flange facing jobs.
