Drills

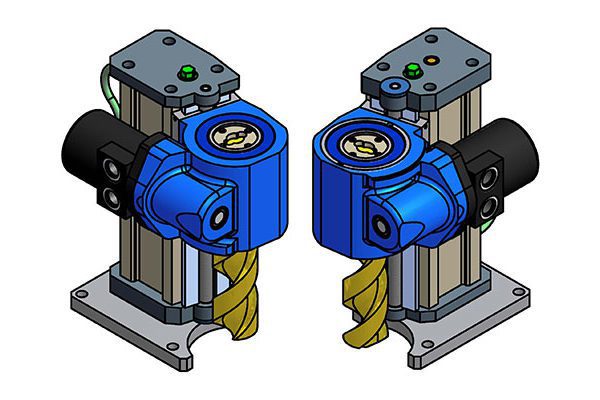

Our portable drill is engineered to deliver high-torque performance to quickly drill more holes in less time!
The CLIMAX drill is equipped with a 3.0 HP motor and can reliable drill holes up to 1.5 inches (38.1 mm) diameter through tough metals like HY80 steel.
| SPECIFICATIONS | INCH | METRIC | |||
| Feed Rate | .003 or .006 ipr | .076 or .152 mmpr | |||
| Maximum Cutting Depth | 6.5 in. | 165.1 mm | |||
| Spindle Size | Morse Taper #3 | Morse Taper #3 | |||
| Drill Size | 0.69 – 1.5 in. | 1.75 – 38.1 mm | |||
| Power Input | 3 HP | 3 HP |
| SPECIFICATIONS | INCH | METRIC | |||
| Feed Rate | 0.3 – 2.5 inch/minute | 7.62 – 63.5 mm/minute | |||
| Maximum Cutting Depth | 6, 7, 10, 12, or 18 in. | 154.4, 177.8, 254, 304.8, or 457.2 mm | |||
| Spindle Size | Morse taper #4 & #5, #40 NMTB adapters available | Morse taper #4 & #5, #40 NMTB adapters available | |||
| Drill Size | Up to 3.25 in. diameter | Up to 82.6 mm diameter | |||
| Power Input | Power Input: Hydraulic 10 HP | Power Input: Hydraulic 10 HP |
