BW5000 Auto Bore Welder

The CLIMAX BW5000 Auto Bore Welder is a powerful, precision bore welding and cladding system engineered for demanding repair and restoration applications. Designed to rotate smoothly around the workpiece, the BW5000 delivers consistent, high-quality weld deposits for rebuilding worn or damaged bores. Its automated operation ensures repeatable results while reducing operator fatigue, making it ideal for maintenance, repair, and overhaul in heavy equipment, mining, energy, and industrial manufacturing environments.

Built for maximum versatility, the BORTECH BW5000 Auto Bore Welder supports bore welding and cladding with virtually any commercially available alloy, including Inconel™, Hastelloy™, Monel™, and stainless steel. This flexibility allows operators to restore critical components to original specifications or enhance wear resistance for extended service life. With rugged construction and proven performance, the BW5000 is a reliable solution for precision bore welding in the field or shop.

Request a Quote

Mobile Nav

Specifications

SPECIFICATIONS INCH METRIC
Axial Travel 10, 20, 30, 40 & 50″ 254, 508, 762, 1016 & 1270 mm
Wire Diameter Range 0.045 – 0.062″ 1.1 – 1.6 mm
Step Range/Pitch Step Range: 0.070 – 0.325″ 1.78 – 8.26 mm
Rotational Direction Reversible Reversible
Auto-Skip Auto Skip, Pie Mode & Carriage Return Auto Skip, Pie Mode & Carriage Return
Standard Torch Range 12 – 120″ 304.8 – 3048.0 mm

Product Advantages

High Quality

The CLIMAX BW5000 Auto Bore Welder with Auto-Skip is an affordable, highly configurable, circumferential weld cladding system, which provides a durable platform for multiple configurations of weld overlay.

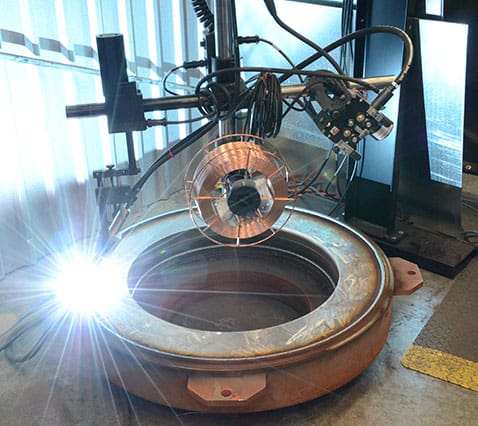

The BW5000 rotates around stationary parts. The wire feed, step, and weld wire rotate together under the stationary head unit, retaining consistent wire placement as the machine rotates.

The BW5000 allows for a wide range of exotic alloys with multiple configurations to meet your needs.

The BW5000 utilizes a CLX step feed system, allowing 100% coverage, creating precision welds of any thickness required between 0.125 and 0.35 inches. (3.175 and 8.89 mm).

Flexible and Dependable Performance

The modular BW5000 system allows efficient and rapid shifts in various configurations like welding bores, facing outside diameters, and conical seats.

Any commercially available alloy can be used, such as Inconel™, Hastelloy™, Monel™, or stainless steel.

The step process reduces waste while maintaining 100% coverage of the bore and allowing weld overlay thickness to be as large or as small as needed.

Flange faces, gasket surfaces and conical seats can also be welded automatically by utilizing an optional variable angle for conical seats.

The BW5000 can interface with most CV power supplies that are remote interconnect capable, and 350 Amp, 100% duty cycle. Clad transfer modes include GMAW-S (short circuit), GMAW-P (pulse waveform), and FCAW-G (gas shielded flux core). All GMAW transfer modes are supported by the BW5000.

Minimize Cost, Waste and Downtime

The BW5000 allows large parts to be welded without rotating them, making it ideal for field work, setting up on large equipment that could never be rotated, and gets the job done 75% faster than traditional hand welding methods.

After welding operations are complete, the BW5000 packs up to require only 1 cubic yard of storage space.

The BW5000 can deposit 12 pounds of metal per hour — hour after hour.

Increase both the welding and production capacity.

Build up or clad bores from 12 to 144 inches (304.8 to 3657.6 mm).

Videos

Product Image
BORTECH the Industry Standard
Product Image

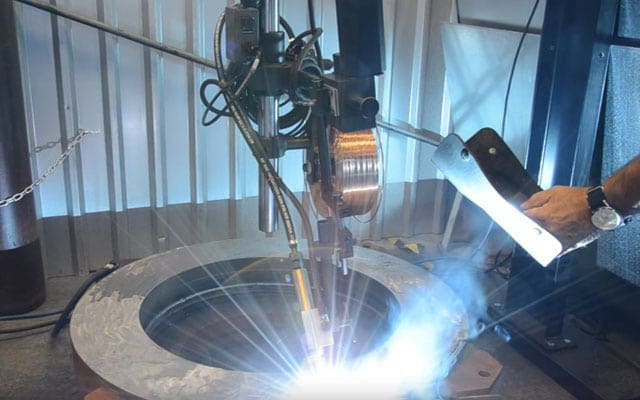

BW5000 AutoBoreWelder- Portable Welding Machine
