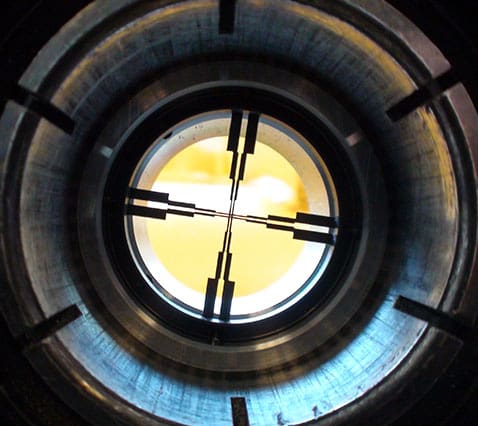

The Brunson Optical Alignment Systems are a simple and accurate way to align many CLIMAX machines, delivering fast, precise alignment for field machining applications. Built for jobsite use, these systems reduce setup time while ensuring accurate bore and machine-axis alignment.

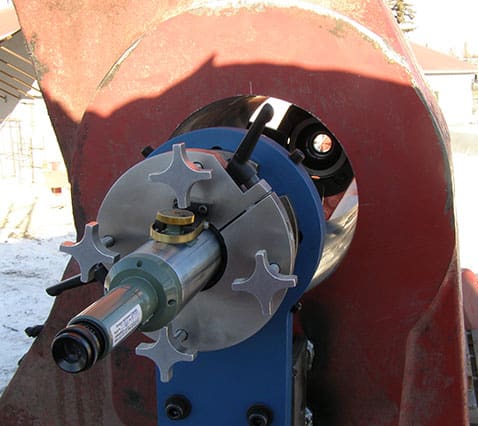

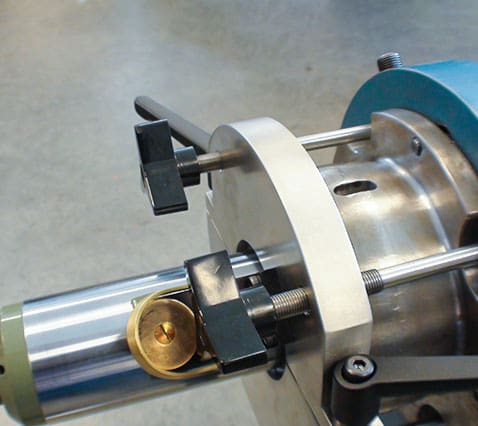

A Brunson system designed for the CLIMAX BB5000 Line Boring Machine aligns 2.25-inch bearings over distances from 2 to 30 ft (609.6–9144 mm), allowing multiple-bearing alignment, bar sag compensation, or elimination of long bars without sacrificing accuracy. The Brunson Model 545 and Model 810 also provide precise alignment for many other CLIMAX machines in the field.
