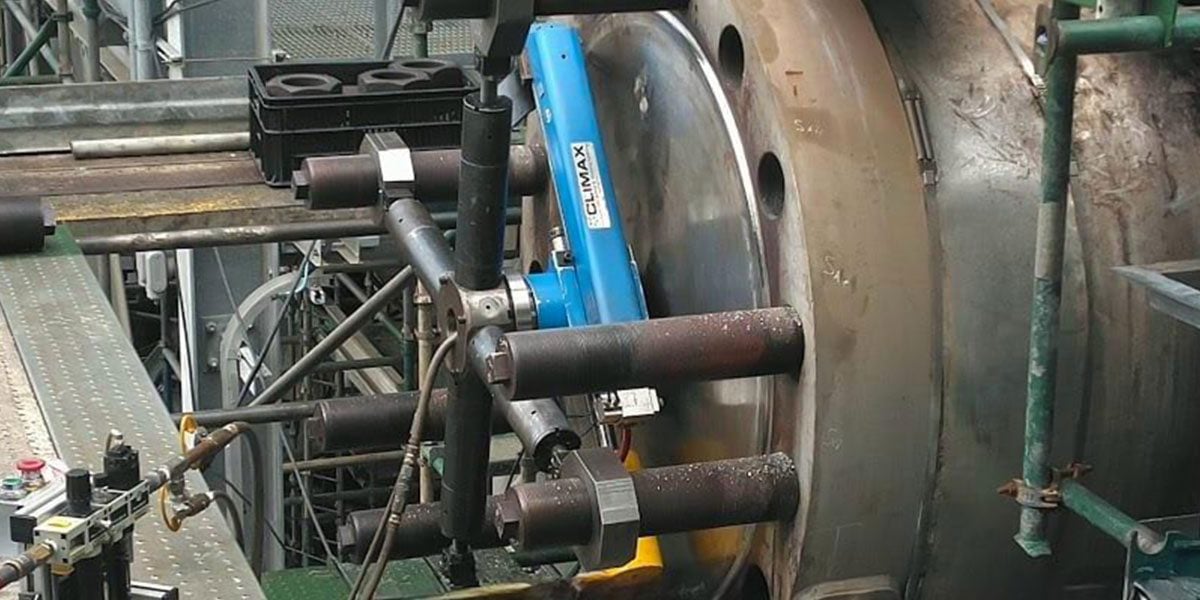

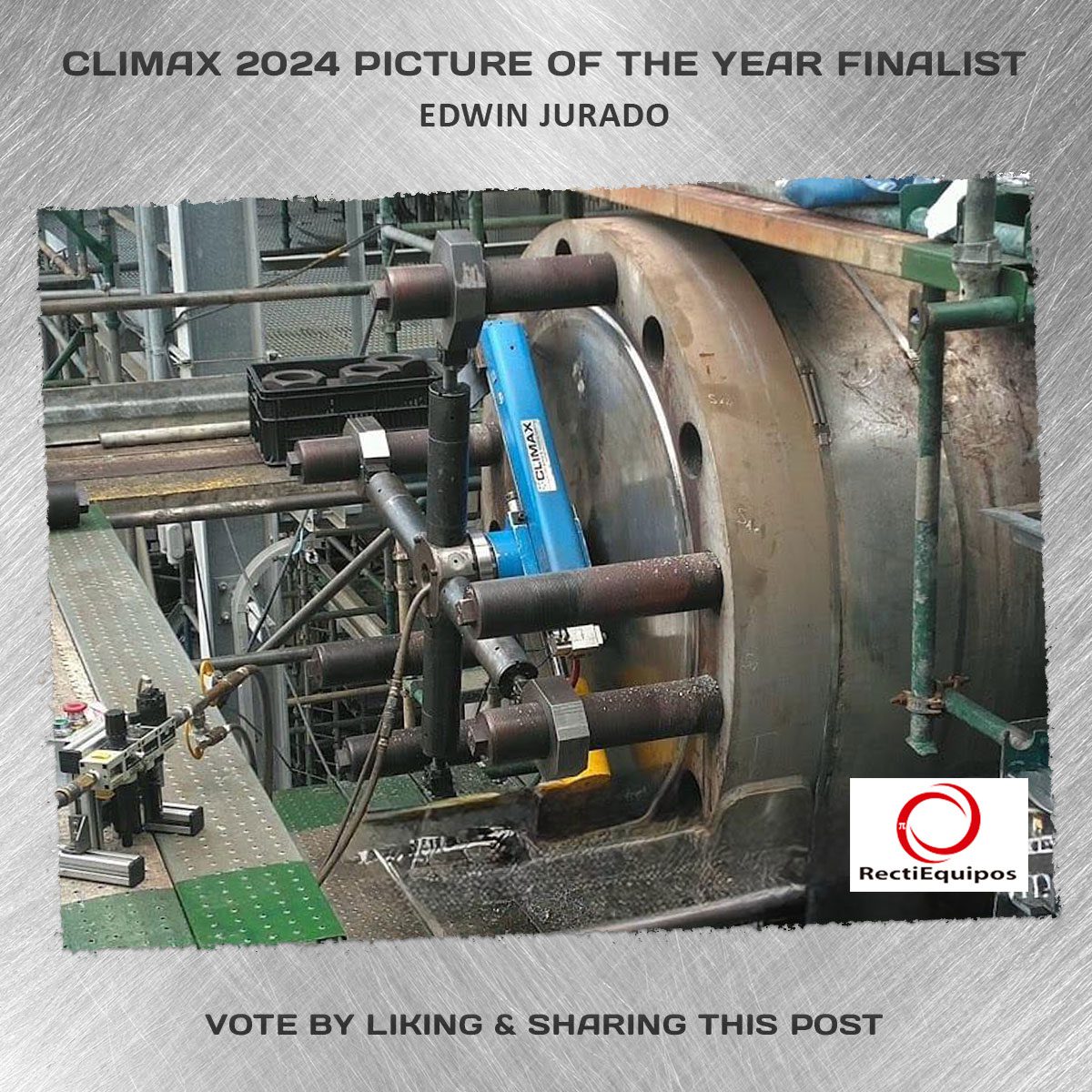

RectiEquipos, based in Bogota, Colombia, showcased an innovative CLIMAX FF6300 flange facer setup on an exchanger’s head in an inverted position. Using custom adaptors, the machine was securely mounted to the exchanger studs, allowing it to hang from the ID mount with hoses strategically positioned to stay clear of the rotating arm—effectively preventing damage to the exchanger studs and threads.

This job required the removal of the weld holding the exchanger diaphragm to provide access to the tube bundle for maintenance. Standard ID or OD mount flange facers couldn’t be used due to the unique location of the exchanger support and diaphragm. Hat tip to the creativity of the operator for taking advantage of the versatility of the CLIMAX FF6300!

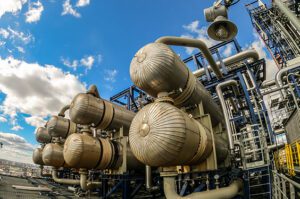

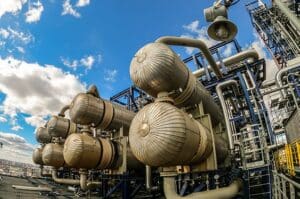

Using a flange facer to remachine the faces on heat exchangers is essential for maintaining the integrity, efficiency, and safety of the equipment. Here’s why this process is critical:

1. Ensuring a Proper Seal

• Importance: Heat exchangers operate under high pressure and temperature conditions, requiring a perfect seal between the flange faces to prevent leaks.
• Flange Facer Benefit: Creates a smooth, flat surface that ensures uniform contact with the gasket, minimizing the risk of leaks and maintaining operational efficiency.

2. Restoring Flatness and Alignment

• Problem: Over time, flange faces can warp, corrode, or wear unevenly due to operational stress, thermal cycling, and environmental exposure.
• Solution: A flange facer restores the flatness and alignment of the mating surfaces, ensuring that the heat exchanger components fit together precisely.

3. Preventing Equipment Failure

• Risk: Uneven or damaged flange faces can lead to leaks or gasket blowouts, which may cause downtime, expensive repairs, and potential safety hazards.
• Outcome: Flange facers eliminate imperfections that could compromise the structural integrity of the heat exchanger, reducing the likelihood of failure.

4. Reducing Maintenance Costs

• Challenge: Frequent gasket replacements or repeated assembly failures increase operational costs.
• Advantage: Remachining flange faces reduces the wear and tear on gaskets and fasteners, extending their lifespan and lowering maintenance expenses.

5. Enhancing Heat Exchanger Performance

• Issue: Poor sealing due to damaged flanges can cause fluid or gas leaks, reducing the efficiency of heat transfer and impacting overall performance.
• Solution: Properly re-machined flange faces ensure optimal sealing, allowing the heat exchanger to operate at peak efficiency.

6. Meeting Industry Standards

• Requirement: Heat exchangers in critical industries such as oil and gas, power generation, and chemical processing must comply with strict safety and performance standards.
• Benefit: Using a flange facer ensures the flange surfaces meet the required tolerances and finishes, maintaining compliance with these regulations.

7. Minimizing Downtime

• Concern: Repairing or replacing a heat exchanger flange can be time-consuming and costly, especially if it involves removing the equipment from its installation.
• In-Place Solution: Portable flange facers allow for on-site re-machining, reducing downtime and eliminating the need to transport heavy equipment to a machine shop.

8. Addressing Corrosion and Wear

• Problem: Corrosion and wear are common on flange faces exposed to harsh chemicals or extreme operating conditions.
• Remachining Advantage: Removes damaged material and restores a clean, corrosion-free surface, preventing further degradation and ensuring long-term reliability.

9. Compatibility with Different Flange Types

• Application: Heat exchangers often use various flange types, including raised face, flat face, and ring-type joint (RTJ) flanges.
• Flexibility: Flange facers can handle all these designs, delivering precise machining tailored to the specific flange requirements.

10. Preventing Recurring Issues

• Problem: Improper repairs or neglected maintenance can lead to recurring leaks and operational inefficiencies.
• Solution: Precision machining with a flange facer provides a long-term fix, reducing the need for frequent interventions.

Process of Flange Facing

1. Inspection:
   • Assess the condition of the flange face, identifying areas of wear, corrosion, or damage.
2. Setup:
   • Secure the flange facer to the heat exchanger flange for stable, accurate machining.
3. Machining:
   • Use the flange facer to remove imperfections, ensuring a smooth and even finish.
4. Quality Check:
   • Verify flatness, surface finish, and alignment with measurement tools.

Using a flange facer to remachine the faces of heat exchangers ensures a perfect seal, restores the integrity of the equipment, and prevents costly issues such as leaks, inefficiencies, and failures. This precision process is vital for maintaining the reliability and performance of heat exchangers in critical industrial applications.  Not all heat exchanger repairs are the same.  Congratulations to RectiEquipos for capturing this unique application.
