PICTURE OF THE YEAR #17: Pharmaceutical Tube Welding

28 Jan PICTURE OF THE YEAR #17: Pharmaceutical Tube Welding

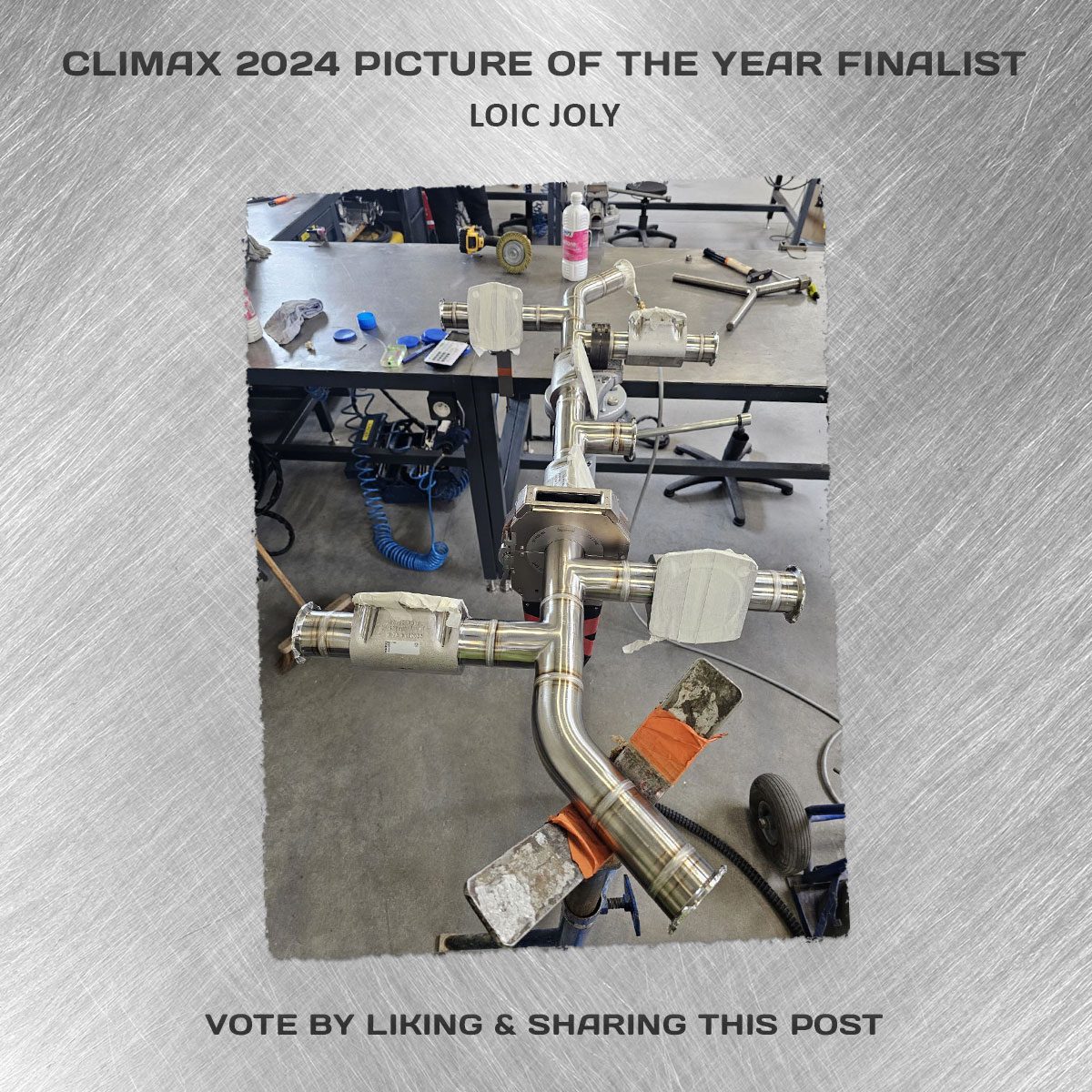

Loic Joly in Hauts-de-France, France! Loic successfully used the AXXAIR SATFX-115 to complete multiple critical welds on this critical tubing section to be installed in a pharmaceutical plant. Closed orbital welding heads, such as the AXXAIR SATFX-115, are highly preferred in the pharmaceutical industry for welding tubes due to their ability to meet stringent requirements for cleanliness, precision, and reliability.

Closed orbital weld heads excel in this application for these key reasons:

1. Cleanliness and Contamination Prevention

• Grease-Free Operation: These heads are compatible with cleanroom standards, ensuring there’s no risk of introducing contaminants into the sterile environments required by pharmaceutical production.
• Fully Enclosed Welding Chamber: The closed design protects the weld area from external contamination, ensuring a hygienic and sterile weld surface.

2. High-Quality Welds for Critical Applications

• Perfect Gas Protection: The closed chamber ensures optimal shielding gas coverage (e.g., argon), minimizing oxidation and preventing weld discoloration. This is critical in pharmaceutical tubing where any weld defects or discoloration can compromise product quality.
• Color-Free Welds: Limited or no coloration is essential for high-purity piping systems, as it ensures the welds meet the strict surface finish and corrosion resistance standards required in pharmaceutical applications.

3. Precision and Repeatability

• Adaptability to Tube Sizes (ø12–ø115mm): The SATFX-115 covers a wide range of diameters, allowing seamless welding across various tube sizes without needing multiple tools.
• Consistent Weld Quality: The integrated software ensures precise control of welding parameters, delivering consistent, repeatable results crucial for meeting validation and regulatory requirements.

4. Compact and Ergonomic Design

• Welding in Confined Spaces: The closed heads are compact, making them ideal for use in tight or restricted areas often found in pharmaceutical facilities where tube routing is complex.
• Ease of Use: With an intuitive interface and preprogrammed parameters, operators can easily adjust settings for different tube materials and sizes, minimizing setup time.

5. Regulatory Compliance

• Hygiene Standards: These welding heads enable the production of sanitary welds with smooth, crevice-free internal surfaces that meet the requirements of pharmaceutical-grade tubing, reducing the risk of product contamination or biofilm formation.
• Validation: The high precision and consistency of these heads make it easier to comply with FDA and GMP standards, which demand high-quality welds and full traceability.

6. Efficiency and Cost Savings

• Quick Setup and Operation: These heads are designed for efficiency, reducing the time required for setup and operation.
• Minimized Post-Weld Cleaning: With limited discoloration and precise welds, the need for additional cleaning, polishing, or passivation is greatly reduced.

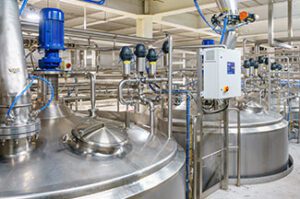

Applications in the Pharmaceutical Industry:

• Process Piping Systems: Welding high-purity stainless steel tubes used in clean-in-place (CIP) and steam-in-place (SIP) systems.
• Biopharmaceutical Manufacturing: Ensuring sterile connections in systems transporting sensitive liquids, gases, or products.
• Laboratory Environments: Maintaining sterile and contamination-free tubing networks in research and production facilities.

In summary, closed orbital welding heads like the AXXAIR SATFX-115 ensure hygienic, high-quality, and repeatable welds, which are essential in the pharmaceutical industry. Their design and performance characteristics align perfectly with the industry’s rigorous cleanliness, precision, and regulatory requirements, making them an indispensable tool for welding pharmaceutical-grade tubes.  Congratulations to Loic Joly for capturing this great work!
