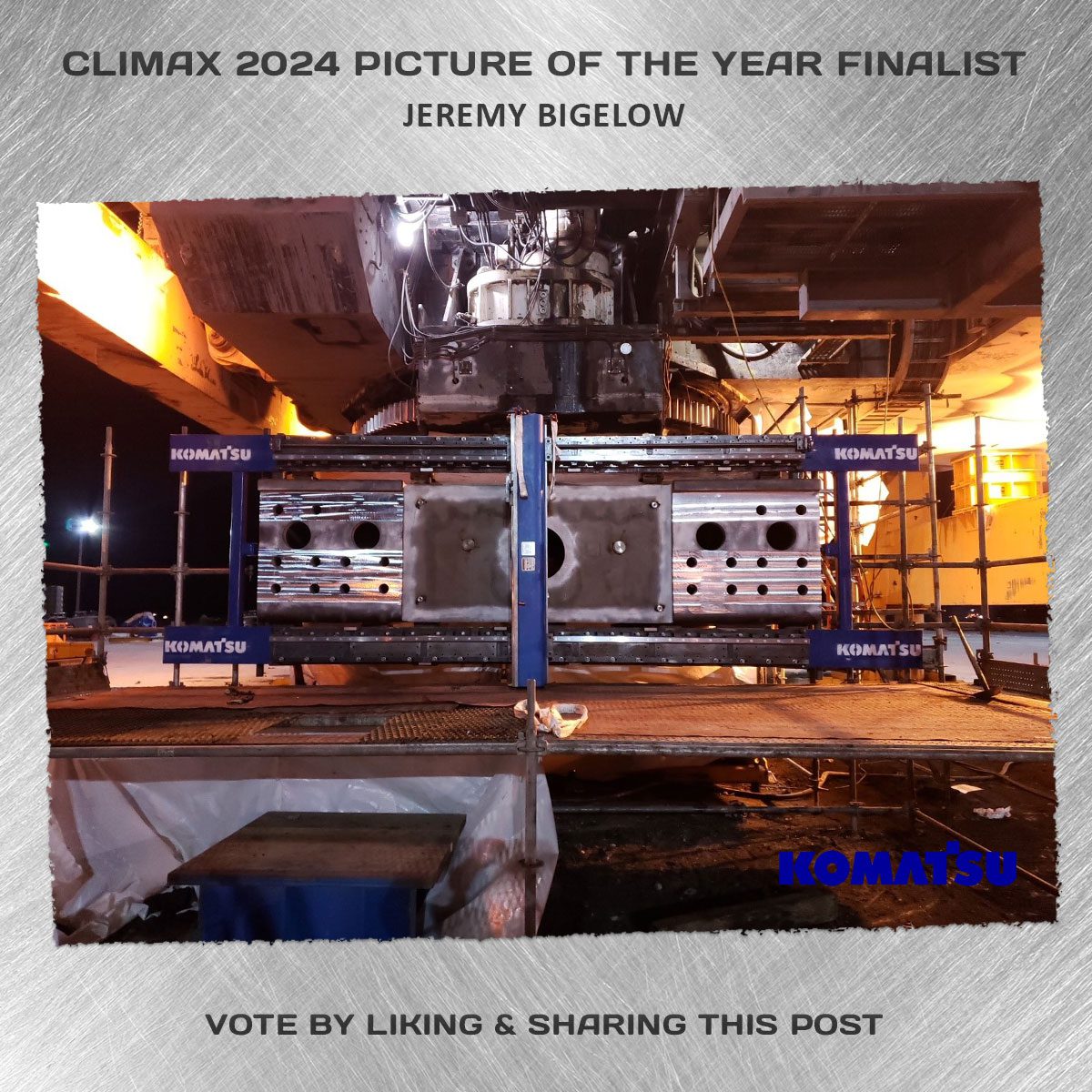

KOMATSU, in Alberta, Canada! Using a CLIMAX LM6200 Gantry Mill, Jeremy successfully machined the track frame mounting faces on a P&H 4100 Shovel Carbody. This critical maintenance task ensures peak performance and reliability for heavy equipment like the P&H 4100 and similar excavators.

VOTE BY LIKING & SHARING THIS POST

Help us pay tribute to on-site machinists and technicians from across the globe with your vote by “liking” and “sharing.” The picture with the most views will WIN our 2024 Picture of the Year.



Re-machining the track frame mounting faces on a P&H 4100 Shovel Carbody or similar excavators is a critical maintenance task for the following reasons:

Importance of Re-machining the Track Frame Mounting Faces:

  1. Structural Integrity: Over time, the track frame mounting faces can experience wear, deformation, or damage due to constant loading, impacts, and environmental conditions. Proper alignment is critical for structural stability.
  2. Prevent Misalignment: Damaged or uneven mounting faces can lead to misalignment of the track frames, causing premature wear on components like tracks, rollers, and idlers.
  3. Operational Efficiency: Misaligned track frames can increase stress on the carbody and reduce the efficiency and lifespan of the shovel or excavator.
  4. Cost Savings: Addressing these issues proactively through re-machining prevents more significant damage that could lead to expensive downtime or the replacement of large structural components.

Why the CLIMAX LM6200 Gantry Mill is Ideal for Onsite Work:

  1. Portability: The LM6200 Gantry Mill is designed to be portable, making it suitable for field repairs in remote mining locations where heavy equipment cannot be easily transported.
  2. Versatility: This machine can perform both linear and gantry milling, allowing it to handle large surfaces like the track frame mounting faces.
  3. Precision: The LM6200 delivers high-precision milling, ensuring flat and accurately aligned mounting surfaces, which is crucial for reassembly and performance.
  4. Time Efficiency: Performing the repair onsite minimizes equipment downtime, as there is no need to disassemble and transport the carbody to an offsite machining facility.
  5. Cost-Effectiveness: Onsite repair using the LM6200 reduces logistics and labor costs compared to transporting and repairing the equipment offsite.

Process for Repairing Track Frame Mounting Faces:

  1. Inspection and Preparation:
    • Conduct a thorough inspection of the track frame mounting faces to assess the extent of wear or damage.
    • Prepare the worksite by securing the shovel or excavator to ensure stability and safety during machining.
  2. Setup of the LM6200 Gantry Mill:
    • Install and align the LM6200 Gantry Mill directly onto the carbody. The machine can be mounted using the bolt holes or clamped to the carbody.
    • Ensure the machine is properly leveled and aligned to the original specifications of the mounting faces.
  3. Milling Operation:
    • Use the LM6200 to remove material from the worn or damaged mounting faces.
    • Achieve a flat and even surface by precisely machining to the required specifications.
    • The LM6200 can perform both longitudinal and transverse passes for a consistent finish.
  4. Final Inspection:
    • After machining, verify the flatness and alignment of the mounting faces using measuring tools like a straight edge, feeler gauges, or laser alignment systems.
    • Ensure the dimensions meet the OEM specifications for proper reassembly.
  5. Reassembly:
    • Reattach the track frames to the carbody, ensuring proper alignment and torque specifications for all fasteners.
    • Conduct a final functional check of the track frames to confirm proper operation.

By using the CLIMAX LM6200 Gantry Mill, you ensure a high-quality repair that extends the service life of the equipment while minimizing downtime and costs. This approach is a proven solution for maintaining the performance and reliability of large mining shovels and excavators.  Congratulations to Jeremy Bigelow for capturing this great application.
