24 Jan PICTURE OF THE YEAR #15: Large Bucket Line Boring & Welding

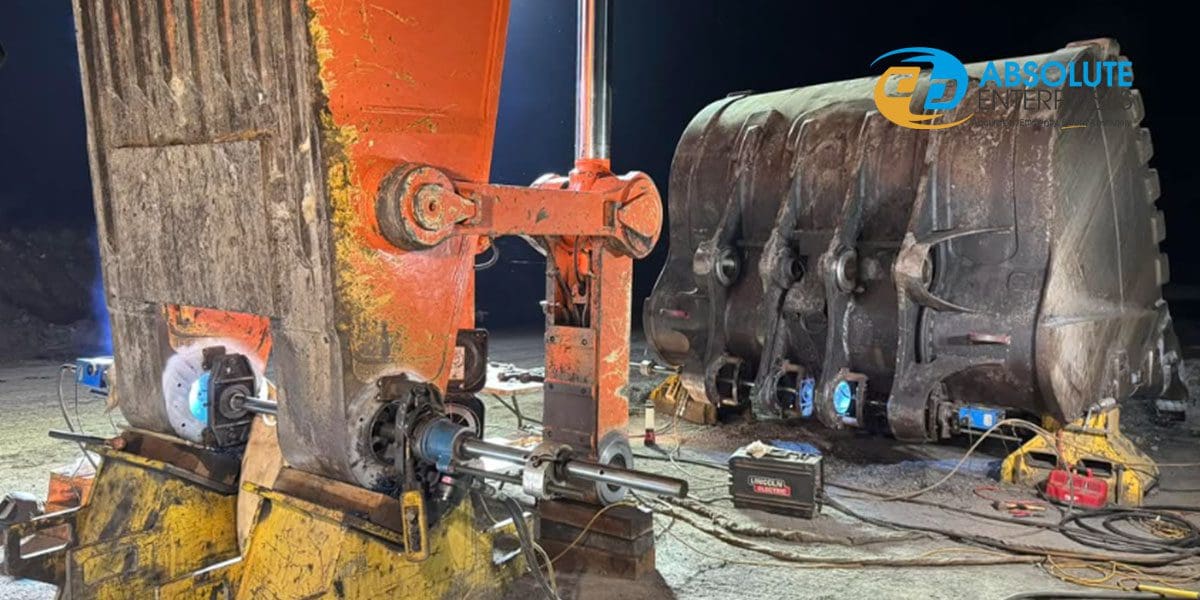

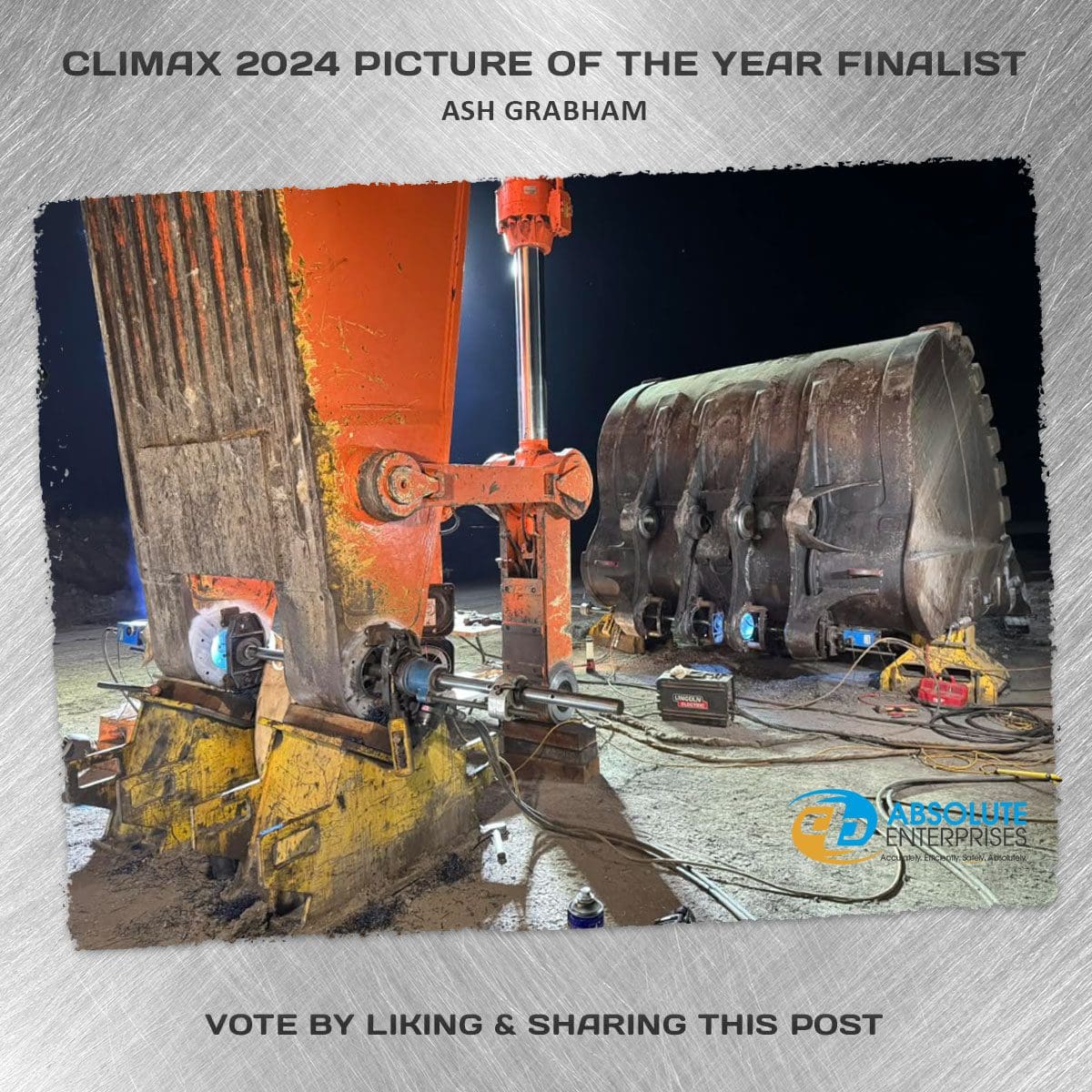

Absolute Enterprises in Paget, Queensland, Australia! Using two CLIMAX BB5000 Line Boring Machines and two CLIMAX BW1000 Auto Bore Welders, Ash and the Absolute Enterprises team made quick work of repairing these bores in the black of night!
Large mining buckets, excavators, and heavy equipment endure extreme conditions, often resulting in wear, corrosion, or damage to bores. These bores are critical for proper operation, serving as pivot points or housing bushings, pins, or shafts. Over time, excessive wear can compromise equipment performance, safety, and productivity.
VOTE BY LIKING & SHARING THIS POSTHelp us pay tribute to on-site machinists and technicians from across the globe with your vote by “liking” and “sharing.” The picture with the most views will WIN our 2024 Picture of the Year. |
The most efficient and precise way to restore these bores to their original specifications is by using a CLIMAX line boring machine in conjunction with a CLIMAX bore welding machine onsite. Here’s why this combination is the gold standard for heavy equipment repairs and how the process works.
Why Use a Combination of CLIMAX Line Boring and Bore Welding Machines?
- Comprehensive Repair Solution
- The bore welding machine restores worn-out material, while the line boring machine precisely machines the bore back to its original specifications. Together, they provide a seamless repair process, eliminating the need for replacement parts.
- Onsite Efficiency
- Transporting large equipment like mining buckets or excavators to a repair shop is logistically challenging and time-intensive. Performing repairs onsite saves time, reduces downtime, and minimizes costs.
- Cost-Effectiveness
- By restoring the existing bore instead of replacing the entire component, you save on material costs and avoid expensive equipment replacement.
- Precision and Durability
- CLIMAX machines are engineered for high precision, ensuring the bore is machined to exact tolerances. The weld material, when applied correctly, restores structural integrity and durability, ensuring long-term performance.
- Versatility
- These machines can handle a variety of bore sizes and configurations, making them ideal for diverse heavy equipment applications.
- Safety and Reliability
- Onsite repairs reduce the risks associated with disassembly, transport, and reassembly. CLIMAX machines are designed for safe operation and reliable results, even in demanding environments.
The Process of Onsite Bore Repair Using CLIMAX Machines
- Inspection and Assessment
-
- Initial Inspection: The bore is inspected for damage, wear, and misalignment. Measurements are taken to determine the extent of wear and the material that needs to be restored.
- Planning: A repair plan is developed, specifying the weld material, machining tolerances, and the sequence of operations.
- Bore Welding
-
- Machine Setup: The CLIMAX bore welding machine is mounted to the bore. Proper alignment is critical to ensure even material deposition.
- Welding Operation: Using the bore welder, technicians apply a controlled, even layer of weld material to the bore surface. The weld is built up to slightly exceed the original dimensions, providing sufficient material for machining.
- Cooling Period: The weld is allowed to cool and stabilize before machining begins.
- Line Boring
-
- Setup: The CLIMAX line boring machine is aligned and mounted to the repaired bore. Advanced alignment tools ensure concentricity and proper setup.
- Machining Passes: The machine removes excess weld material in precise increments, restoring the bore to its original diameter and specifications.
- Final Finishing: The last passes achieve the required surface finish and tolerances, ensuring the bore is ready for reassembly.
- Quality Assurance
-
- Measurement and Inspection: After machining, the bore is measured using precision instruments to verify dimensions, alignment, and surface finish.
- Documentation: A detailed report is generated, confirming the bore meets the original equipment manufacturer (OEM) specifications.
- Reassembly and Testing
-
- The repaired component is reassembled, and the equipment is tested to ensure proper operation and fit.
Key Considerations for Successful Repairs
- Skilled Technicians: Both line boring and bore welding require experienced operators who understand the nuances of equipment repair and precision machining.
- High-Quality Equipment: CLIMAX machines are renowned for their precision, reliability, and ease of use, making them the preferred choice for heavy equipment repairs.
- Preventive Maintenance: Regular inspections and preventive maintenance can help identify bore wear early, reducing the need for extensive repairs.
Combining a CLIMAX line boring machine with a CLIMAX bore welding machine is the ultimate solution for restoring worn or damaged bores on heavy equipment like mining buckets and excavators. This comprehensive, onsite repair process minimizes downtime, saves costs, and ensures long-lasting performance. Congratulations to Ash Grabham of Absolute Enterprises for catching this great line boring application.
When precision and efficiency are critical, trust in CLIMAX machines to deliver exceptional results. Equip your team with the tools and expertise needed to keep your heavy equipment operating at peak performance, even in the toughest conditions.
