22 Jan PICTURE OF THE YEAR #13: Heavy Wall Pipes in Refinery Application

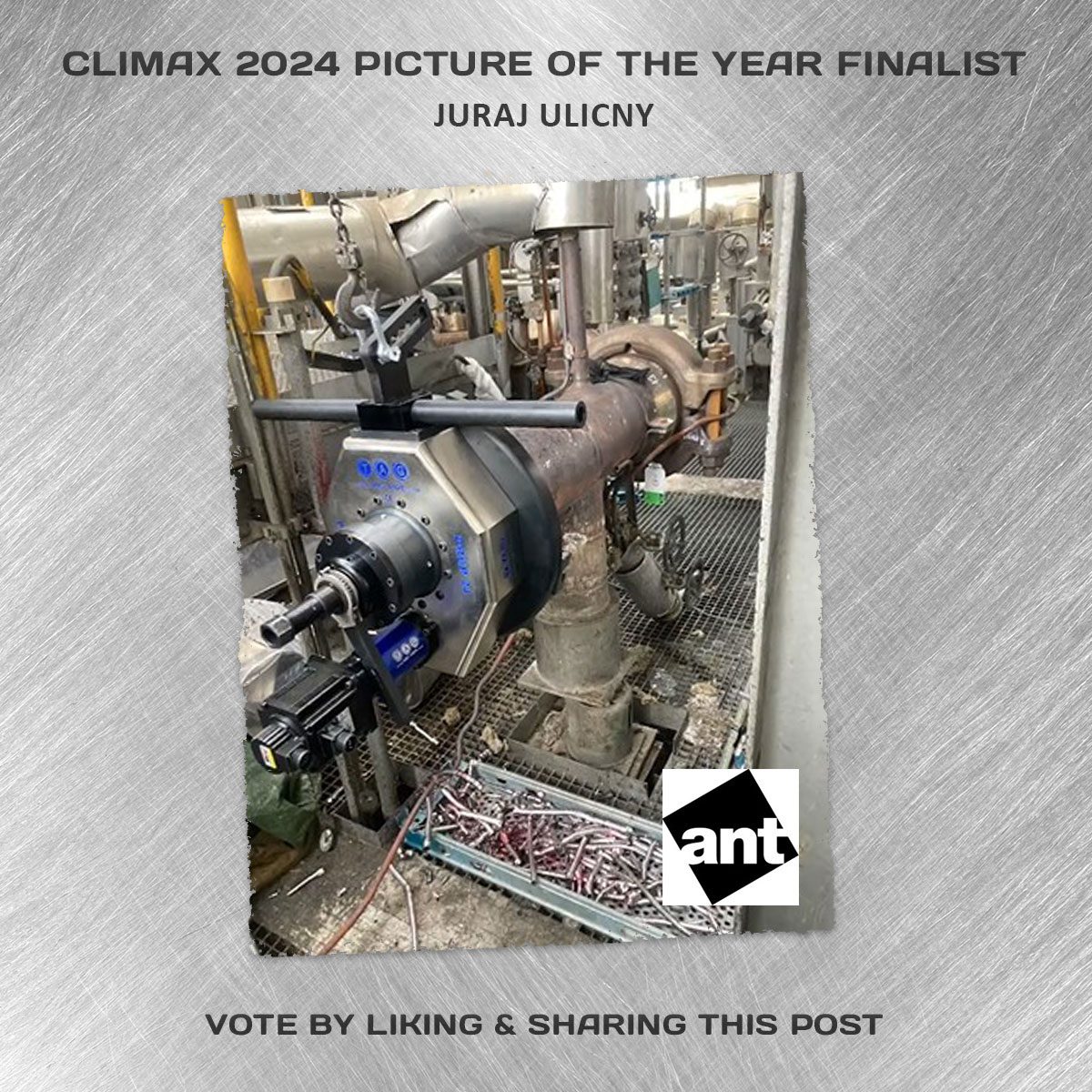

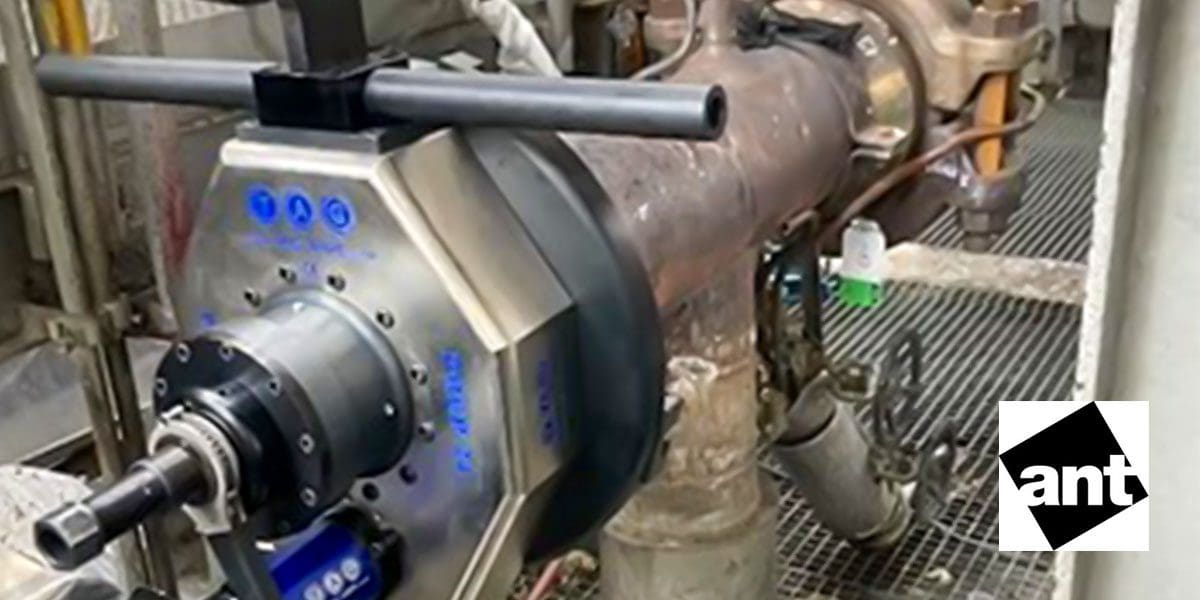

ant s.r.o. in Bratislava, Slovakia! Juraj successfully utilized the TAG Prep 24 in a refinery to bevel stainless steel heavy wall pipes.
In the demanding environment of a refinery, the need for precision, efficiency, and safety in pipe fabrication and repair cannot be overstated. Cutting and beveling heavy wall pipes for weld preparation presents unique challenges, particularly when working onsite in confined spaces or under tight deadlines.
VOTE BY LIKING & SHARING THIS POST
Help us pay tribute to on-site machinists and technicians from across the globe with your vote by “liking” and “sharing.” The picture with the most views will WIN our 2024 Picture of the Year. |
Using a portable pipe beveler is the optimal solution for achieving high-quality weld prep on heavy wall pipes. Here’s why and how the process typically unfolds.
Why Use a TAG Portable Pipe Beveler for Heavy Wall Pipes?
1. Precision and Consistency
- TAG Portable pipe bevelers are designed to produce uniform, accurate bevels that meet industry standards for welding. Consistent bevel angles and finishes are crucial for ensuring strong, defect-free welds.
2. Efficiency in Tight Spaces
- Refineries often have limited workspace. Portable pipe bevelers are compact and adaptable, making them ideal for use in confined areas without sacrificing performance.
3. Cost-Effectiveness
- Onsite beveling eliminates the need to transport pipes to offsite facilities, saving time and money. Additionally, these machines reduce material waste by minimizing errors during the beveling process.
4. Versatility
- TAG Prep machines can handle a wide range of pipe diameters and wall thicknesses, from standard to heavy-duty pipes, making them suitable for various refinery applications.
5. Safety and Reliability
- Designed with safety features such as automatic feeds and chip control, portable bevelers reduce operator fatigue and the risk of accidents. Their robust construction ensures reliable performance, even in harsh industrial environments.
The Process of Cutting and Beveling Heavy Wall Pipes
1. Initial Assessment and Preparation
- Pipe Inspection: Inspect the pipe for irregularities, such as surface defects or dimensional inconsistencies.
- Measurements: Measure the pipe diameter and wall thickness to determine the appropriate bevel angle and cutting depth.
- Tool Selection: Choose a portable pipe beveler with the right configuration for the job, including cutting heads and tool bits designed for heavy wall materials.
2. Pipe Cutting
- Tool Setup: Secure the portable beveler to the pipe using clamps or a mounting system to ensure stability during the cutting process.
- Cutting Operation: The beveler is powered up, and the cutting head is engaged to create a precise, clean cut through the pipe. Depending on the pipe’s thickness, this may require multiple passes.
3. Beveling
- Beveling Angle Setup: Adjust the beveling tool to achieve the specified bevel angle, typically 30° or 37.5° for standard weld prep.
- Beveling Operation: The machine gradually removes material along the edge of the pipe, creating a smooth, angled surface for welding. For heavy wall pipes, additional processes such as J-prep or compound beveling may be required to accommodate the weld joint design.
4. Quality Control
- Inspection: After cutting and beveling, the pipe end is inspected using gauges or templates to ensure it meets the specified dimensions and bevel angle.
- Surface Finish: Verify that the surface finish is smooth and free of burrs, ensuring optimal weld penetration and strength.
5. Final Steps
- Cleanup: Remove chips and debris from the work area to maintain a safe and efficient environment.
- Welding Preparation: The beveled pipe end is cleaned and aligned with the adjoining pipe section, ready for welding.
Key Considerations for Using Portable Pipe Bevelers
- Tool Quality: Choose bevelers from trusted brands like TAG and/or H&S TOOL to ensure durability, precision, and safety.
- Operator Training: Proper training is essential for maximizing the performance of portable pipe bevelers and ensuring safe operation.
- Material Compatibility: Ensure that the beveler is equipped to handle the specific material and wall thickness of the pipe being worked on.
- Preventive Maintenance: Regular maintenance of beveling tools ensures consistent performance and prolongs their lifespan.
Portable pipe bevelers are indispensable tools for weld preparation of heavy wall pipes at refineries. Their precision, efficiency, and adaptability make them the best choice for tackling the unique challenges of onsite pipe fabrication. By using the right equipment, refinery operators can ensure high-quality welds, minimize downtime, and maintain safety standards.
When precision and reliability are non-negotiable, TAG portable pipe bevelers are the ultimate solution for cutting and beveling heavy wall pipes onsite. Equip your team with the right tools and expertise to keep your refinery running smoothly and efficiently. Congratulations to Juraj Ulicny from ant s.r.o. for capturing this application onsite!
