21 Jan PICTURE OF THE YEAR #12: Heat Exchanger Shell Machining

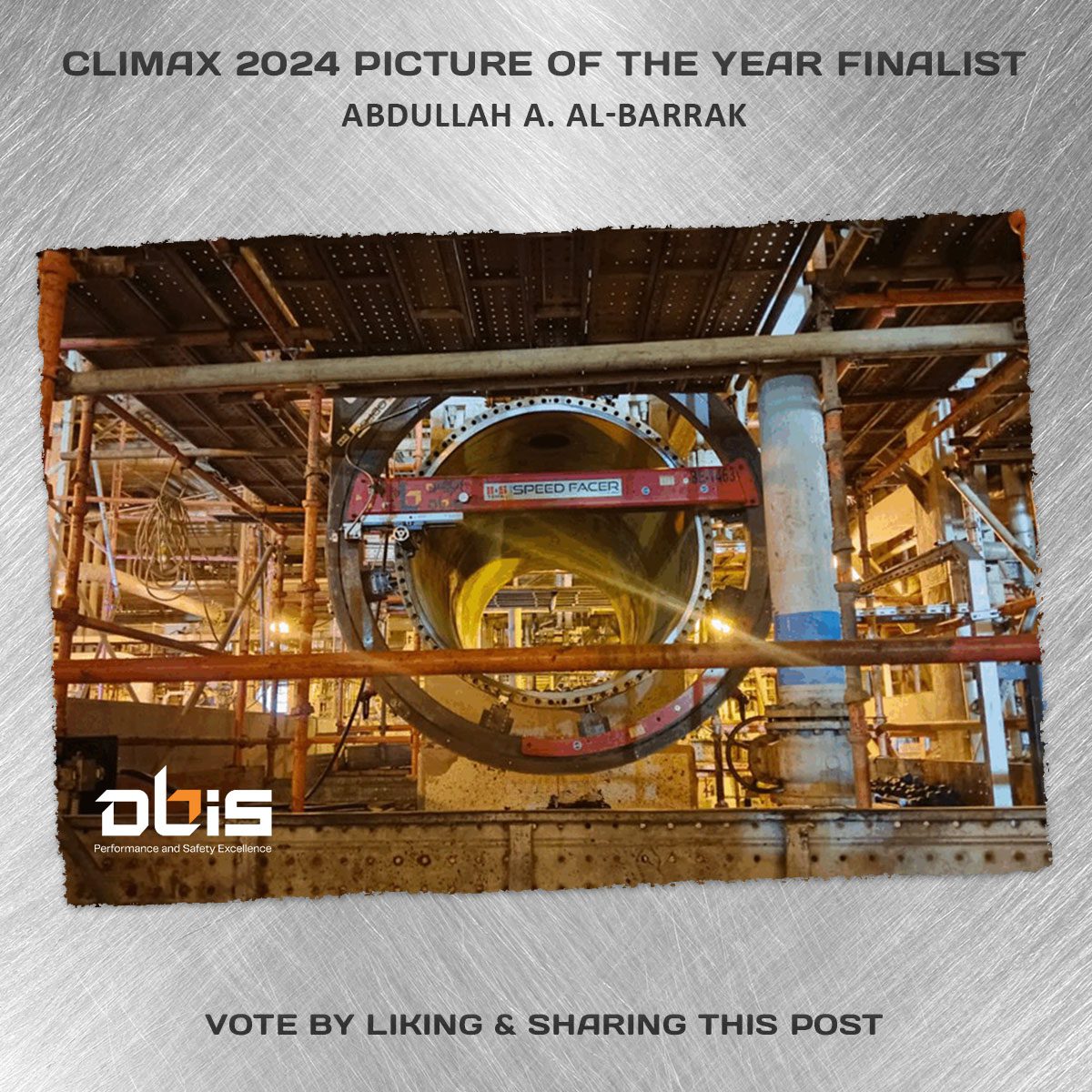

Abdullah A. Al-Barrak & Sons Co. in Jubail Industrial City, Saudi Arabia, successfully utilized an H&S TOOL ODF80 SPEED FACER™ flange facer to re-machine a heat exchanger shell onsite during a critical shutdown at a Saudi Aramco plant in Saudi Arabia.
VOTE BY LIKING & SHARING THIS POST
Help us pay tribute to on-site machinists and technicians from across the globe with your vote by “liking” and “sharing.” The picture with the most views will WIN our 2024 Picture of the Year. |

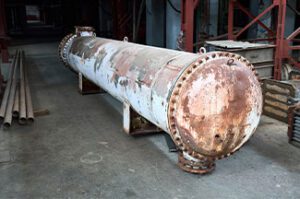

Heat exchangers are vital components in refinery operations, facilitating the efficient transfer of heat between fluids. Over time, the shell faces of these exchangers—where flanges connect—can suffer damage from corrosion, wear, or thermal stress. Such damage can result in leaks, pressure loss, and even equipment failure, potentially disrupting refinery operations.
Using a portable flange facer to repair these surfaces on-site is the most effective solution. Here’s why and how it works:
Why Use a Portable Flange Facer for Onsite Repairs?
- Minimizes Downtime
- Removing and transporting a heat exchanger to a machine shop for flange face repair is a time-intensive process that can halt operations. Portable flange facers allow technicians to repair the shell face directly onsite, significantly reducing downtime.
- Cost-Effective
- Onsite repairs eliminate transportation costs, disassembly expenses, and the need for extended labor. Repairs with a portable flange facer save money while maintaining high-quality results.
- Restores to OEM Specifications
- Portable flange facers are engineered to restore the flange face to original specifications, ensuring proper sealing surfaces for reliable operation.
- Precision and Versatility
- Speedfacers from H&S Tool can handle a variety of face profiles, including flat, raised face, and RTJ (Ring-Type Joint) surfaces. Their precision ensures that the re-machined surface meets the exact tolerances required for high-pressure, high-temperature refinery applications.
- Safety and Efficiency
- Repairing the flange face in place reduces the risks associated with transporting heavy equipment. Additionally, portable flange facers are designed for quick setup and operation, allowing repairs to be completed efficiently.
The Process for Onsite Flange Face Repair
Repairing a heat exchanger shell face using a portable flange facer involves several critical steps:
1. Inspection and Assessment
- Visual Inspection: Technicians inspect the shell face for signs of damage, including corrosion, pitting, or uneven wear.
- Measurement: Precision tools are used to measure flatness, surface finish, and any deviations from the original specifications.
- Planning: Based on the findings, a repair plan is developed, including the type of machining required (e.g., flat-facing, RTJ groove restoration).
2. Preparing the Site
- Surface Cleaning: The flange surface is cleaned to remove debris, corrosion, or old gasket material.
- Tool Setup: The portable flange facer is securely mounted to the heat exchanger shell using adjustable arms or mounting brackets. Proper alignment is critical for achieving precise results.
3. Machining the Flange Face
- Machining Passes: The flange facer removes a thin layer of material in successive passes to eliminate damage and restore the surface.
- Surface Profile Restoration: If the flange includes a groove, such as an RTJ, the portable facer is configured to recreate it with precision.
- Surface Finish: The final pass ensures the correct surface finish, which is critical for achieving a leak-proof seal when the flange is reassembled.
4. Quality Control
- Inspection: After machining, the flange face is inspected using gauges and precision instruments to verify flatness, surface profile, and finish.
- Documentation: Measurements and results are documented to confirm compliance with specifications.
5. Reassembly and Testing
- Once the flange face is restored, the heat exchanger is reassembled, and proper gaskets and seals are installed.
- The equipment undergoes pressure testing to ensure a reliable seal and proper operation.
Key Considerations for Onsite Flange Face Repair
- Skilled Technicians: Successful onsite machining requires experienced operators who understand the intricacies of portable flange facers and heat exchanger systems.
- High-Quality Equipment: Investing in reliable, precision-engineered portable flange facers is critical for achieving consistent results.
- Preventive Maintenance: Regular inspections and maintenance can help detect flange face damage early, reducing the need for emergency repairs.
Using a portable flange facer to repair heat exchanger shell faces onsite is the optimal solution for refineries. It minimizes downtime, reduces costs, and restores the equipment to its original specifications with precision. By repairing the flange face in place, refineries can maintain operational efficiency and prevent costly disruptions.
For refinery operators looking to enhance their maintenance processes, portable flange facers from industry-leading brands offer the reliability and performance needed to keep your operation running smoothly. When your heat exchanger flange faces need attention, trust in the power of onsite precision machining tools to get the job done right. Congratulations to ABIS for capturing this application!
