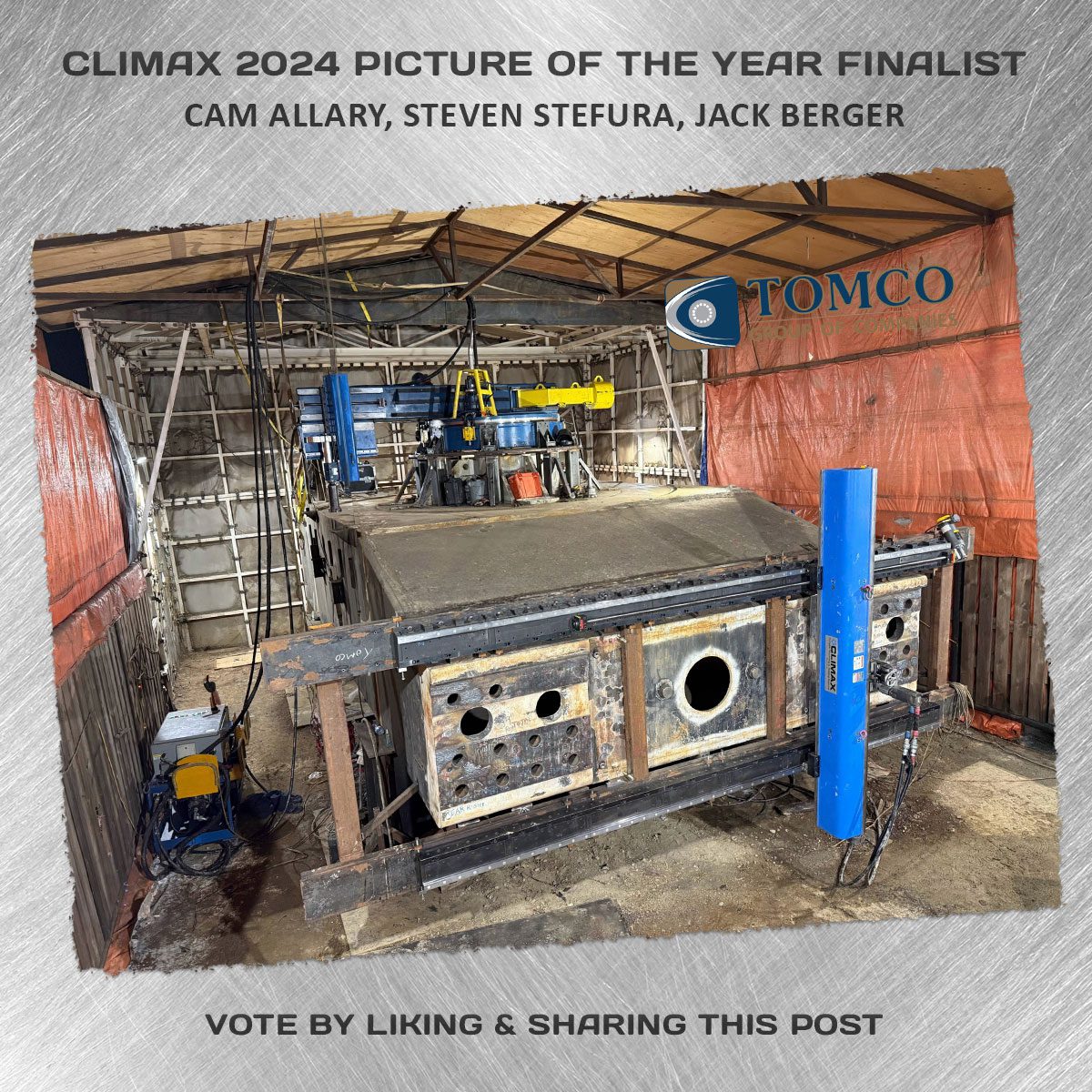

TOMCO Industrial from Leduc, Canada, used a CLIMAX CM6000 Circular Mill and an LM6200 Gantry Linear Mill to repair a Caterpillar 7495 Carbody back to spec. These machines are being used to mill the side frame and shear ledge surfaces as well as the swing gear mounting surface. The CM6000 milled out to 190” diameter on the swing gear and the LM6200 utilized 16 feet of horizontal travel and utilized a 106” ram for vertical travel.

Repairing and milling the side frames, shear ledge surfaces, and swing gear mounting surfaces on Caterpillar carbody components is essential to ensure the structural integrity, precise alignment, and operational efficiency of heavy-duty equipment like excavators and draglines. Here’s why each area is crucial:

1. Ensuring Structural Integrity

• Side Frames:
  • These frames bear the brunt of the machine’s load and stress during operation.
  • Wear, deformation, or damage to the side frames can compromise the overall stability and durability of the carbody.
  • Milling ensures these surfaces are restored to flatness and proper dimensions, preventing cracks or fractures under heavy loads.
• Shear Ledge Surfaces:
  • These surfaces provide critical support and alignment for attachments and other components.
  • Damaged or uneven shear ledge surfaces can lead to stress concentrations, weakening the carbody and risking structural failure.
  • Repair and milling restore their strength and load-distribution capabilities.

2. Restoring Precision Alignment

• Swing Gear Mounting Surfaces:
  • The swing gear is responsible for the smooth rotation of the upper structure of the machine.
  • Misaligned or worn mounting surfaces can cause uneven loading of the swing gear, resulting in premature wear, vibration, and inefficiency.
  • Circular Milling restores proper alignment, ensuring optimal engagement between the swing gear and its mating components.

3. Preventing Excessive Wear on Components

• Uneven or damaged surfaces in these critical areas lead to improper seating of components such as bearings, bushings, and gear teeth.
• Repairing and milling prevent accelerated wear on these components, extending their operational lifespan and reducing maintenance costs.

4. Enhancing Equipment Performance

• Flat, true surfaces ensure smooth operation of all moving parts, including the swing gear and attachment mechanisms.
• Proper repairs eliminate misalignment that can cause inefficiencies, energy losses, and increased operating costs.

5. Improving Safety

• Equipment with compromised side frames, shear ledges, or swing gear mounts can fail under heavy loads, posing significant risks to operators and nearby personnel.
• Milling these surfaces ensures the carbody can handle the required loads safely.

6. Supporting Load Distribution

• Side Frames and Shear Ledges:
• These areas are critical for distributing the machine’s massive weight and the forces generated during operation.
• Restoring them prevents localized stress, reducing the risk of material fatigue and failure.

7. Maintaining Manufacturer Specifications

• Heavy equipment like Caterpillar machines must adhere to precise tolerances for optimal operation.
• Milling and repairing these surfaces bring the carbody back to OEM specifications, ensuring compatibility and performance.

8. Reducing Downtime and Costs

• Ignoring these repairs can lead to frequent breakdowns, costly replacements, and extended downtime.
• Proactive repair and milling reduce the likelihood of future failures, increasing reliability and productivity.

Process Overview for Repairs and Milling

• Inspection:
  • Assess wear, damage, and alignment of the side frames, shear ledge surfaces, and swing gear mounts.
  • Use precision measuring tools to determine deviations from specifications.
• Repair and Preparation:
  • Weld or fill damaged areas as necessary to restore structural integrity.
  • Prepare surfaces for milling by cleaning and ensuring accessibility.
• Milling:
  • Use portable or CNC milling machines to restore flatness, alignment, and proper dimensions.
• Final Inspection:
  • Verify tolerances, alignment, and surface finish to ensure adherence to OEM specifications.

By repairing and milling the side frames, shear ledge surfaces, and swing gear mounting surfaces on Caterpillar carbody components, you enhance the machine’s reliability, performance, and safety. This maintenance step minimizes wear, prevents costly downtime, and ensures the equipment can handle its demanding operational requirements. Congratulations to the team at TOMCO for capturing this application.
