27 May Innovation in Action: RectiEquipos Elevates Maintenance with CLIMAX FF6300 Flange Facer
At CLIMAX, we’re proud to engineer machines that not only meet industrial challenges but also empower our customers to solve problems in new and inventive ways. A recent example comes from RectiEquipos in Bogotá, Colombia, where their team showcased an innovative setup of the CLIMAX FF6300 flange facer on a heat exchanger that demanded creativity and precision.
The Challenge: Tight Spaces and Unconventional Mounting
The task involved removing a weld that secured the exchanger diaphragm, allowing access to the tube bundle for routine maintenance. However, due to the diaphragm’s location and the exchanger’s support configuration, neither standard ID nor OD-mounted flange facers could be used. Traditional flange machines simply didn’t fit and posed a high risk of damaging the exchanger’s studs and threads, a risk the RectiEquipos team wasn’t willing to take.
The Solution: Turning the FF6300 Upside Down

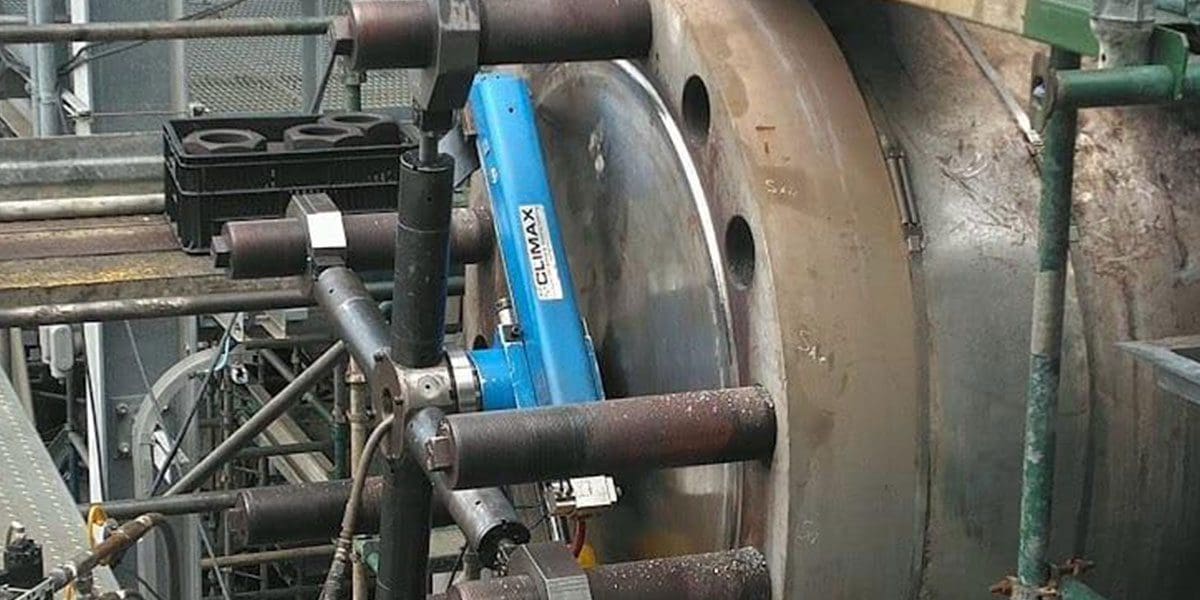

Faced with this unique challenge, the RectiEquipos team fully leveraged the versatility of the CLIMAX FF6300 flange facer. Rather than relying on a conventional setup, they engineered a completely inverted configuration, using custom-designed adaptors to securely mount the machine to the exchanger studs.
This inventive approach allowed the flange machine to hang vertically from an internal mount. Hoses were carefully routed to avoid the rotating arm, ensuring smooth operation and eliminating the risk of interference or damage. The result was a clean and precise flange facing operation that successfully removed the diaphragm weld without compromising the exchanger’s structural integrity.
A Showcase of Operator Ingenuity
What makes this job remarkable isn’t just the performance of the FF6300, but the operator’s resourcefulness. The machine’s modular design and adaptability allowed the technician to execute a solution few would attempt, turning a high-risk, high-precision task into a safe and efficient field machining success.
Mission Accomplished:
- Weld removed cleanly from the diaphragm
- Tube bundle made accessible for maintenance
- Studs and threads preserved with zero damage
Why Choose the FF6300 Flange Facer?
This project highlights why the CLIMAX FF6300 flange facer continues to be a go-to solution in the field:
- Versatile mounting options for unmatched adaptability
- Rugged, precision engineering for demanding applications
- Custom configuration capabilities for unique jobs
The FF6300 flange facer isn’t just a flange facer; it’s a problem-solving tool for real-world challenges.
Special thanks to RectiEquipos for sharing this outstanding field application and demonstrating what’s possible when innovation meets reliable tooling.
Learn more about our full range of flange facers at www.climaxportable.com or contact your CLIMAX sales representative.
Have a CLIMAX story to share? We’d love to feature your success.
