Rentals
EXACTLY WHAT YOU NEED.
Buying any tool, no matter how good, is difficult to justify when you may use it only once or twice a year. But with virtually the entire catalog of CLIMAX machines available for rental, your toolbox is as big as you need it to be – without the upfront investment.
Talk to our rental specialists and applications experts to determine the perfect fit for each job. Rent it. Repair right on site. Return it.
CLIMAX can supply a rental tool to any location in the world!
MACHINES AVAILABLE FOR RENT!
Our line boring machines support boring diameters from 1.375 to 80 inches (35 to 2030 mm), with the precision and speed of stationary machines. Specially designed mounting brackets, spherical bearings, self-centering setup cones, and movable rotational drive and feed units simplify setup and allow the tools to work in spaces too tight for most line boring machines. All models feature rugged rotational drive and axial feed systems, precision bars and heavy duty bearings, with electric, pneumatic and hydraulic options.
| PRODUCT | BAR DIAMETERS | BORING DIAMETERS |
| BB3000 LINE BORING MACHINE | 1.25 in. (31.8mm) | 1.5 – 5 in. (38.1 – 127 mm) |
| BB4500 LINE BORING MACHINE | 1.75 in. (44.5 mm) or optional 1.25 in. (31.8 mm) | 1.5 – 10 in. (38.1 – 254 mm) |
| BB5000 LINE BORING MACHINE | 2.25 in. (57.2 mm) or optional 1.25 in. (31.8 mm) | 1.5 – 24 in. (38.1 – 609.6 mm) |
| BB6100 LINE BORING MACHINE | 3.5 in. (88.9 mm) | 8.8 – 40.8 in. (223.5 – 1036.3 mm) |
| BB7100 LINE BORING MACHINE | 5 in. (127 mm) | 10.25 – 58.25 in. (260.4 – 1479.6 mm) |
| BB8100 LINE BORING MACHINE | 8 in. (203.2 mm) | 17.1 – 85.1 in. (434.3 – 2161.5 mm) |
CLIMAX’s automated welding machines are designed to attach directly to several of our boring machine mounting fixtures allowing a single setup for both welding and machining operations. These automated welders offer high-quality, affordable welding performance for bore, flange and valve repair.
| PRODUCT | AXIAL TRAVEL | WIRE DIAMETER RANGE |
| BW2600 AUTOBOREWELDER – PORTABLE BORE WELDING MACHINE | 9 in. (228.6 mm) | 0.030 – 0.045 in. diameter (0.76 – 1.14 mm) |
| BW3000 AUTOBOREWELDER – PORTABLE BORE WELDING MACHINE | 6 or 12 in. (152.4 or 304.8 mm) | 0.023 – 0.045 in. (0.58 – 1.14 mm) |
CLIMAX circular mills deliver fast, versatile machining to meet demanding wind tower specifications for connection flanges. Three-axis milling head adjustments allow the machinist to meet taper and flatness specifications simultaneously.
| PRODUCT | ID MOUNTING DIAMETERS | MILLING DIAMETERS |
| CM6200 CIRCULAR MILL | 78.9 – 177.2 in. (2004.1 – 4500.9 mm) | 73.5 – 199 in. (1866.9 – 5054.6 mm) |
We offer a wide variety of rugged and innovative portable flange facers for 1 to 120 inch (25 to 3050 mm) diameters, for ID or OD mounting. Several of our machines can be configured for facing, milling or both, and many of our models reface, mill, bevel, square, counterbore, or cut end-prep configurations for welding. For easy setup, smaller units use an integral mandrel to quickly lock into place, while the larger units can be installed with a separate mount or chuck to which the facer body is installed.
| PRODUCT | FACING DIAMETERS | ID MOUNTING DIAMETERS |
| MODEL BF | 0.75 in. ID - 4.12 in. OD (19.1 - 104.6 mm) | 0.625 - 2.875 in. (15.9 - 73 mm) |
| MODEL MSF | 1.25 in. ID - 6.19 in. OD (31.8 - 157.2 mm) | 1 - 5 in. (25.4 - 127 mm) |
| MODEL MTF | 3.25 in. ID - 10.63 in. OD (82.6 - 270 mm) | 2 - 8.5 in. (50.8 - 215.9 mm) |
| FF3000 FLANGE FACER | 1.5 – 12 in. (38.1 – 304.8 mm) | 1.5 – 6.75 in. (38.1 – 171.5 mm) |
| MODEL MFTF | 4.25 in. ID - 16.25 in. OD (19.1 - 412.8 mm) | 3 - 13.5 in. (76.2 - 343 mm) |
| FF4000 FLANGE FACER | 3 – 19 in. (76.2 – 482.6 mm) | 3 – 12.5 in. (76.2 – 317.5 mm) |
| FF5000 FLANGE FACER | 5 – 24 in. (127 – 609.6 mm) | 5 – 18 in. (88.9 – 457.2 mm) |
| FF5300 FLANGE FACER | 5.7 – 32 inches (144.8 – 812.8 mm), 5.7 – 40 inches (144.8 – 1016 mm) with extended arm | 5.7 – 35.8 inches (144.8 – 909.3 mm) |
| FF6300 FLANGE FACER | 11.8 – 60 in. (299.7 – 1524.0 mm) | 11.8 – 57.5 in. (299.7 – 1460.5 mm) |
| FF7200 FLANGE FACER | 30 – 72 in. (762 – 1828.8 mm) | 30 – 72 in. (762 – 1828.8 mm) |
| FF8200 FLANGE FACER | 45 – 120 in. (1143 – 3048 mm) | 45 – 120 in. (1143 – 3048 mm) |
This safe, versatile and rugged OD Mount Flange Facer can machine 7 flange types up to 36.4 inches (924.6 mm) in diameter. Designed for the rugged challenges of the Oil, Gas & Chemical industry, this machine sets a new standard in operator safety while delivering up to 30% time savings on flange facing jobs.
| PRODUCT | FACING DIAMETERS | OD MOUNTING DIAMETERS |
| FF1000 FLANGE FACER | 0 – 12 in. (0 – 304.8 mm) | 2 – 12 in. (50.8 – 304.8 mm) |
| FF1200 OD MOUNT FLANGE FACER | 0 – 12.5 in. (0 – 317.5 mm) | 4 – 12.5 in. (104.6 – 317.5 mm) |
| FF2400 OD MOUNT FLANGE FACER | 0 – 24.5 in. (0 – 622.3 mm) | 11.2 – 24.4 in. (284.5 – 619.8 mm) |
| FF3600 OD MOUNT FLANGE FACER | 0 – 36.5 in. (0 – 927.1 mm) | 23.2 – 36.4 in. (589.3 – 924.6 mm) |
| FF6300 FLANGE FACER | 11.8 – 60 in. (299.7 – 1524.0 mm) | 8.5 – 60 in. (215.9 – 1524.0 mm) |
| FF8200 FLANGE FACER | 45 – 120 in. (1143 – 3048 mm) | 89.8 – 136.4 in. (2280.9 – 3464.6 mm) |
| ODF30 SPEED FACER™ | 0 – 30.5 in. (0 - 775 mm) | 9.2 – 30.5 in. (234 - 775 mm) |
| ODF40 SPEED FACER™ | 0 – 40.5 in. (0 -1029 mm) | 19.2 – 40.5 in. (488 - 1029 mm) |
| ODF50 SPEED FACER™ | 0 – 50.5 in. (0 - 1283 mm) | 29.2 – 50.5 in. (742 - 1283 mm) |
| ODF60 SPEED FACER™ | 0 – 60.5 in. (0 - 1537 mm) | 39.2 – 60.5 in. (996 - 1537 mm) |
| ODF70 SPEED FACER™ | 0 – 70.5 in. (0 - 1791 mm) | 49.2 – 70.5 in. (1250 - 1791 mm) |
| ODF110 SPEED FACER™ | 0 – 110.5 in. (0 - 2806 mm) | 89.2 – 110.5 in. (2268 - 2806 mm) |
For about the same cost as machining a keyway off-site, you can purchase a CLIMAX Key Mill. These two-axis and three-axis mills cut keyways, slots, pockets, or flats on shaft diameters of 1.5 to 24 inches (38 to 610 mm). They can be operated in any position, thanks to their sealed gear box lubrication.
| PRODUCT | KEYWAY LENGTH | KEYWAY WIDTH |
| KM3000 KEY MILL | 6 in. (152.4 mm) | 1.25 in. (31.8 mm) |
| KM4000 KEY MILL | 8 in. (203.2 mm) | 3.25 in. (82.6 mm) with 2 in. (50.8 mm) sideshift |
Our portable lathes can pay for themselves on their first job whether it’s cutting O-ring grooves, repairing turbine spindles, or fixing an out-of-round gear seat area on the shaft of a high-speed production machine. Our lathes bolt on the end of a shaft to re-turn shafts, and roll journals from 1.5 inches to 24 inches (38 to 610 mm). Some models can work in areas as tight as 7 inches (177.8 mm) of radial clearance. Pneumatic power is standard, with optional electric power available on several models.
| PRODUCT | MAX. TURNING REACH | SHAFT DIAMETERS |
| PL2000 LATHE | 12.5 in. (317.5 mm) | 1.5 – 9 in. (38.1 – 228.6 mm) |
| PL3000 LATHE | 22 in. (558.8 mm) | 4 – 11.25 in. (101.6 – 285.8 mm) |
| PL4000 LATHE | 27 in. (685.8 mm) | 8 – 24 in. (203.2 – 609.6 mm) |
Our portable three-axis milling machine family starts with the PM4200 – a versatile model with available bed options of 20, 49 or 78 inches (508, 1244.6 and 1981.2 mm) of travel. Our largest mill, the LM6200, features the ability to configure for linear AND gantry milling, with up to 84 inches (2133.6 mm) of x-axis travel and 34 inches (863.6 mm) of y-axis travel. There is plenty of spindle torque for fast metal removal and the capacity to mill in nearly any position.
| PRODUCT | MAX. X-AXIS TRAVEL | MAX. Y-AXIS TRAVEL |
| PM4200 MILLING MACHINE | 20, 49 or 78 in. (508.0, 1244.6 or 1981.2 mm) | 8 in. (203.2 mm) w/ Weldon 12 in. (304.8 mm) w/ HSK |
| LM5200 LINEAR/GANTRY MILL | 84 in. (2133.6 mm) | 34 in. (863.6 mm) |
| LM6200 LINEAR/GANTRY MILL | 176 in. (4470.4 mm) | 106 in. (2692.4 mm) |
I.D. Mount Tube and Pipe Cutting and Machining. Working range 0.5 – 30 inches (12.7 – 762 mm).
| PRODUCT | WORKING RANGE | RADIAL TOOL CLEARANCE |
| PB6 POWER BEVELER | 1.7 in. ID - 7 in. OD (43.2 ID - 177.8 OD mm) | 7 in. (177.8 mm) |
| PB8 POWER BEVELER | 2 in. ID - 8.625 in. OD (50.8 ID - 219.1 OD mm) | 9 in. (228.6 mm) |
| PB12 POWER BEVELER | 3 in. ID - 14 in. OD (76.2 ID - 355.6 OD mm) | 14 in. (355.6 mm) |
| PB30 POWER BEVELER | 8 in. ID - 30 in. OD (203.2 ID - 762.0 OD mm) | 24 in. (609.6 mm) & 30 in. (762 mm) |
ID Mount Tube Bevelers come in 9 models with a working range of 0.5 – 5-9/16 inches (12.7 – 141.3 mm).
| PRODUCT | WORKING RANGE | RADIAL TOOL CLEARANCE |
| BG22 BOILER GUN™ | 0.5 in. ID - 2.5 in. OD (12.7 ID - 63.5 OD mm) | 0.8 in. (20.3 mm) |
| BG22OD BOILER GUN™ | 0.75 in. ID - 2.25 in. OD (19.1 - 57.2 mm) | 0.75 in. (19.1 mm) |
| BG38 BOILER GUN™ | 0.625 in. ID - 3 in. OD (15.8 ID - 76.2 OD mm) | 1.312 in. (33.3 mm) |
| BG38 SPECIAL BOILER GUN™ | 0.5 in. ID - 3 in. OD (12.7 - 76.2 mm) | 0.750 in. (19 mm) |
| BG44 BOILER GUN™ | 0.875 in. ID - 5 in. OD (22.2 ID - 127 OD mm) | 1.312 in. (33.3 mm) |
| BG50 BOILER GUN™ | 1 in. ID - 5.562 in. OD (25.4 - 141.3 mm) | 2.75 in. (69.83 mm) |
Pneumatic powered rolling motors range from small 1,000 rpm models to large units that produce 600.0 ft.lbs. (821.1 Nm) of torque.
| PRODUCT | WORKING RANGE | TORQUE LEVEL |
| TUBE ROLLING & EXPANDING EQUIPMENT | 0.25 in. ID - 4.5 in. OD (6.4 - 114.3 mm) | Up to 600 ft lbs (821.1 N·m) |
Abrasive cutting wheel saws offered in 2 hand held models and 1 track mounted model. Chain mounted reciprocating saw up to 24 inches (609.6 mm).
| PRODUCT | CUT | TYPE OF SAW |
| RS-24 RECIPROCATING SAW | Up to 24 in. (609.6 mm) | Reciprocating saw |
| CHS COMPACT SAW | Depth of cut 2, 3, & 3.5 in. (50.8, 76.2, & 88.9 mm) | Hand saw |
| TS-400 TRACK SAW | Up to 4 in. (101.6 mm) | Track saw |

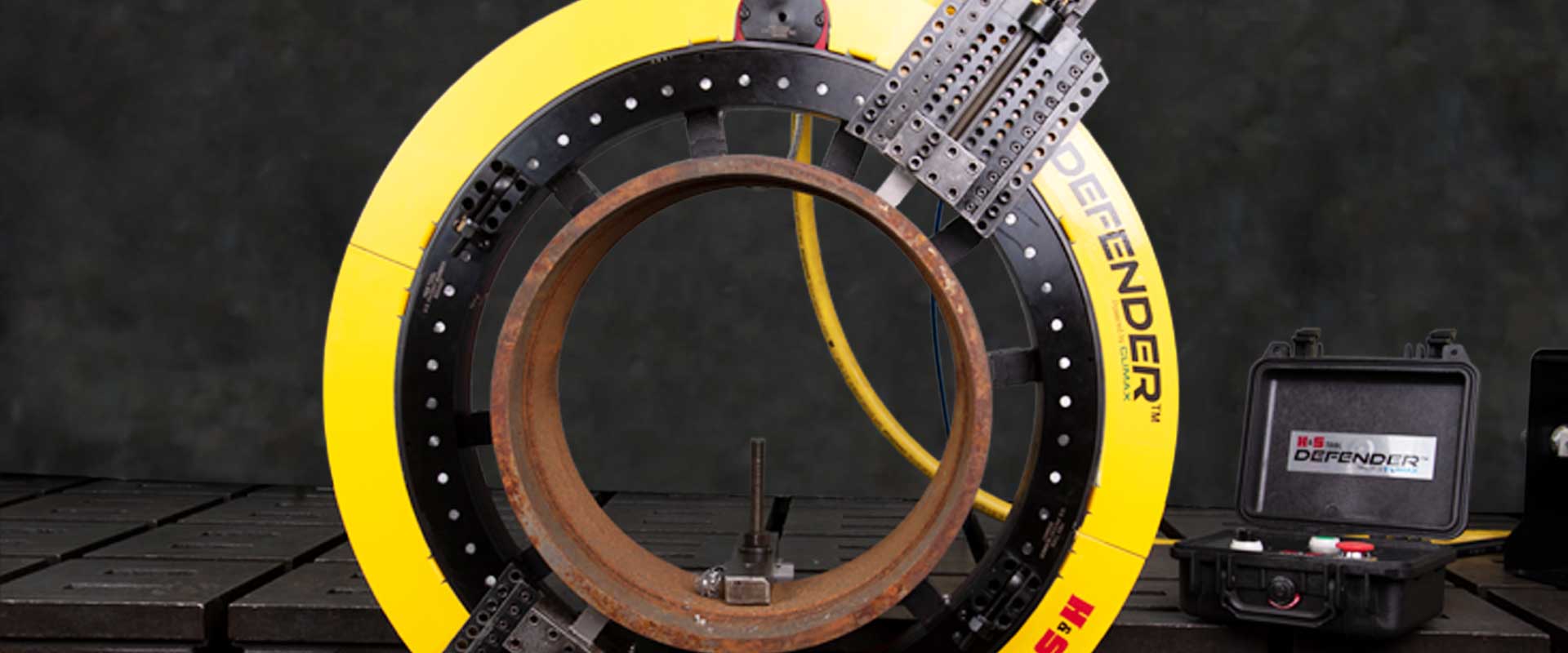

Clamshell (Split-Frame) OD Mount Machines. Sever and machine pipes from .625 – 86 inches (25.4 – 2184.4 mm).
| PRODUCT | WORKING RANGE | SLIDE SWING |
| MFC SPLIT-FRAME (CLAMSHELL) MACHINE | 0.625 - 2.625 in. (15.9 - 66.7 mm) | 1 in. (25.4 mm) |
| AFC SPLIT-FRAME (CLAMSHELL) MACHINE | 1 - 42 in. (25.4 - 1066.8 mm) | 1, 2, 3, 4, 7, & 10 in. (25.4, 50.8, 76.2, 101.6, 177.8, & 254 mm) |
| BFC SPLIT-FRAME (CLAMSHELL) MACHINE | 34 - 86 in. (863.6 - 2184.4 mm) | 1, 2, 3, 4, 7, & 10 in. (25.4, 50.8, 76.2, 101.6, 177.8, & 254 mm) |
Lightweight for easy handling and installation, our valve grinding and lapping machines span working ranges for gate valves from 1.3 to 39.4 inches (32 to 1000 mm). During operation, you can quickly change grinding disks and adjust the grind pressure. Solid construction, sealed lubrication and pre-loaded bearings ensure long life and low maintenance.
| PRODUCT | SEAT DIAMETER RANGE | SUBMERGING DEPTH | VALVE TYPE | POWER OPTIONS |
| VM1350, VM1500, OR VM1600 GATE VALVE GRINDING & LAPPING | 1.6 – 23.6 in. (40 – 600 mm) | 39.4 in. (1000 mm) | Gate/Swing Check | Electric, Pneumatic |
| VM2050S OR VM2150S GLOBE/SAFETY VALVE GRINDING & LAPPING | 0.4 – 5.9 in. (10 – 150 mm) | 11.8 in. (300 mm) | Globe (Flat Seats)/Safety | Electric, Pneumatic |
| VM2350, VM2500, OR VM2600 GLOBE VALVE FLAT SEAT GRINDING & LAPPING | 3.1 – 23.6 in. (80 – 600 mm) | 31.5 in. (800 mm) | Globe (Flat Seats) | Electric, Pneumatic |

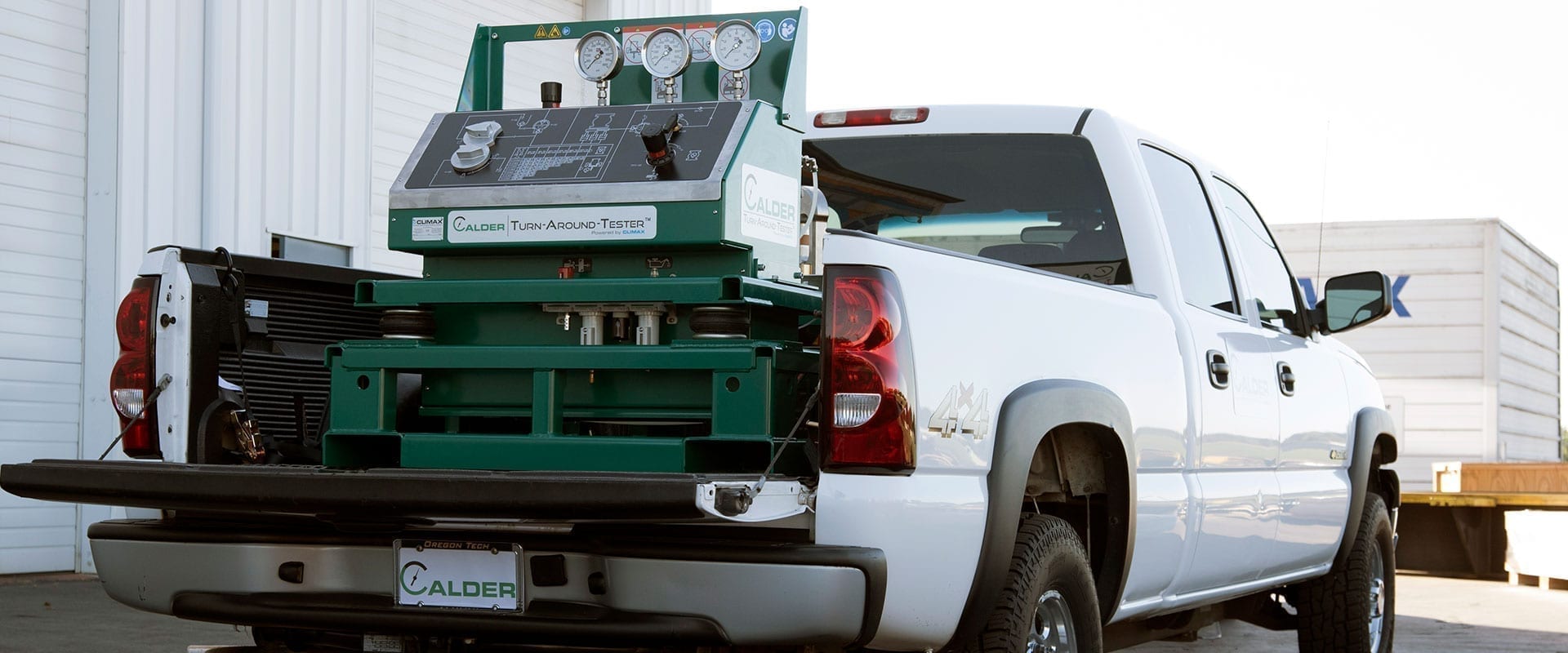

The CALDER Valve Test System Can Grow & Evolve with YOUR Business! The lineup of CALDER advanced valve testing systems, manufactured by CLIMAX, are the most flexible and versatile systems on the market. The CALDER test system can seamlessly expand and evolve with your business, giving you the lowest total cost of ownership (TCO) and the highest return on investment (ROI) over the life of the tester.
| PRODUCT | VALVE TYPE | VALVE CLAMPING | TYPE OF TESTS |
| TURN-AROUND-TESTER | Ball, globe, gate, & check valves | Flange clamping | Hydrostatic & low-pressure air seat leakage |
We are ready and committed to assisting our customers’ needs to continuously improve productivity and accuracy of their tools by delivering quality parts and accessories that maximize performance.
| PRODUCT | FEATURES |
| HYDRAULIC POWER UNIT | Climax offers a full line of hydraulic power units designed specifically for use with portable machine tools. Available in 230, 380, and 460 voltage models with 5, 10, 15, or 25 HP ratings to meet your specific power needs. |
| OPTICAL ALIGNMENT SYSTEM | Brunson Optical Alignment Systems are a simple and accurate way to align many CLIMAX machines. |
