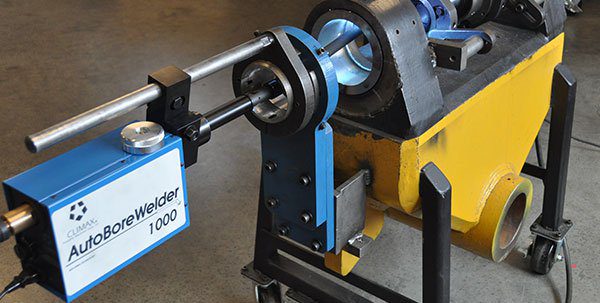

The BORTECH BW1000 Auto Bore Welder automated spiral welding system provides you with an affordable bore welding system. High quality bore welding technology is now available in a ruggedly constructed, highly portable and easily affordable package. Now you can:
Axial Travel:
9 inches (228.6 mm)
Wire Diameter Range:
0.030 – 0.045 inches (0.76 – 1.14 mm)
Step Range/Pitch:
Pitch: 0.125 inches (3.2 mm) Helical
Rotational Direction:
Clockwise rotation
Auto-Skip:
No
Standard Torch Range:
0.88 – 24 inches (22.4 – 609.6 mm)
Lightweight & Portable
Weighs just 17 lb (7.7 kg).
Easy to transport from the shop to the field.
Extremely Versatile & Easy to Operate
Welds in any axis: vertical, horizontal or inverted.
Operation is extremely simple.
Interfaces with most wire feeders.
One setup for Both Welding & Boring
The CLIMAX Bore Welder Interface Kit simplifies your boring and welding setup process:
Allows quick attachment of the BW1000 Auto Bore Welder directly to the CLIMAX BB3000, BB4500 or BB5000 Boring System mounting fixtures.
Ensures perfect alignment for both welding and machining.
One setup for both welding and boring saves time, and helps you get your job done quickly.
Weld & Bore at the Same Time
Because the BW1000 Auto Bore Welder uses the same mounting fixtures as the CLIMAX BB3000, BB4500 or BB5000 Boring Systems, you can weld up one section of your job and bore out another section at the same time. Simply use an extra set of bearing mounts to line bore one set of bores while bore welding another…cuts your work time!
